Baader UV/IR-Cut / L-Filter – CMOS-optimized

Please choose version to see SKU number
Price from
€65.00

Price excl. German VAT tax (19%): € 54.62


Which side should face the telescope?
Filter size:None

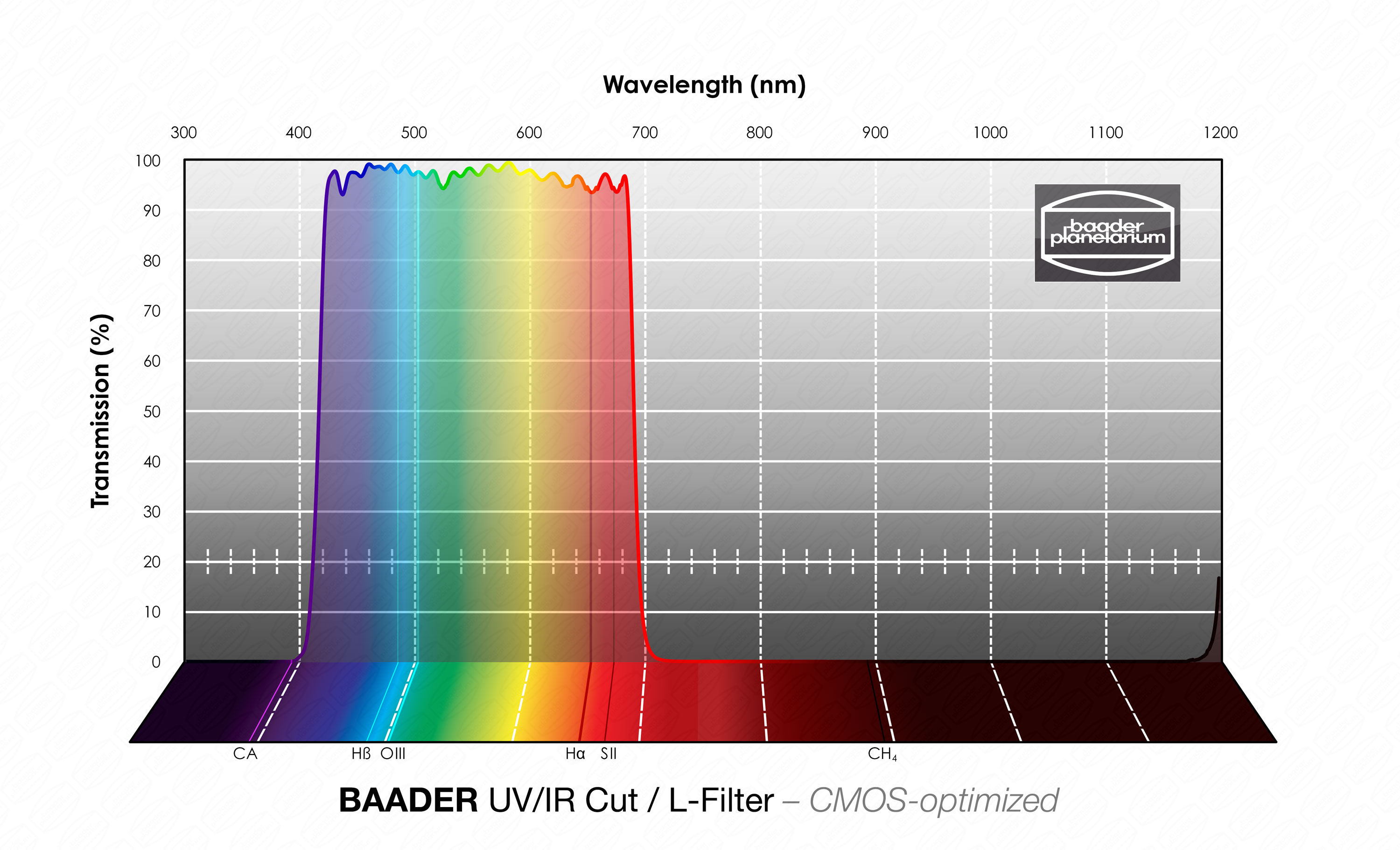

  • Baader CMOS UV/IR-Cut (420 – 685 nm) Bandpass Filter, suitable from f/15 to f/1.8
  • Reflects harmful thermal radiation in the infrared spectral range
  • Provides 98% transmission over the entire visible spectrum from 420 - 685 nm
  • Prevents blurred star imaging with red-sensitive digital and CCD/CMOS cameras
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
Stackable Baader Filter-Box included Stackable Baader Filter-Box included

Create your own FILTER-LIBRARY:

This filter - except for size 100x100x3 mm - (in case of a filter set: each individual filter) comes in a Filterbox for all filters up to 50x50mm, stackable on all sides (#2459253 , € 7,- ) , to create your individual "filter-library", offering a secure place and immediate access for all Baader-filters. Putting this "library" into a carry bag will allow you to have all your loose filters stored safely in the field and be handy always.
Show more
Show more

Baader UV/IR-Cut / L-Filter – CMOS-optimized

  • Technical data not yet specified
    Please choose product variant from dropdown above to see technical data of your chosen product

Customer Reviews

5.0
reviews
Tell us what you think about this item!

Top customer reviews

Denis
Rating
10
Good quality and great support
The filter is of good quality. Also, I wasn’t sure about availability of the filter and delivery options. Customer support helped me with that.
Good quality
Lack of technical specifications and documentation, e.g. design temperature.
Nick
Rating
00
Works as intended
I've bought this filter and the UV bandpass filter so I can take UV and VIS images with my adapted camera. It works really nice, nothing to complain.
Baader Planetarium
Response from Baader Planetarium
Thanks for your kind review. We do indeed offer our UFC Universal Filter Changer System. Please check out the following GIF which is example setup of a UFC system mounted on a camera lens with M72 thread (the example shows an unmounted 50x50 filter slider, other sliders are available as well): https://assets.baader-planetarium.com/media/extendware/ewimageopt/media/inline/ca/1/baader-ufc-universal-filter-changer-5cd.gif
Filters the UV and IR so that I can still use my modified camera as a regular one
I now connect it using a step down ring, so when I switch between UV and VIS it is a bit of a hassle. Probably there is a slide in filter system available that solves this issue. I might not be the only one, if this exists a hint on the webpage would be great. This isn't something directly related to the product, so still 5/5.
Sandrino Marinescu
Rating
50
Beautifully engineered filters to use in
The long story short goes like this: we needed an UV cut filter with a cut-off wavelength in range of 400-420nm. The issue was we needed the filter at an "impossible" size, of precisely 5.6mm diameter. Luckily for us, the 39mm diameter, 0.55mm thick UV/IR cut filter from Baader was thin enough so we could cut it ourselves to measure. Although we do not encourage anybody to cut /shape the filters themselves (it's tedious, highly time-consuming process) the end result was a precise 5.6mm UV cut filter that we could finally mount in our UV fluorescence photography setup. The filter itself performs flawlessly to its purpose but that is quite expected when it comes to Baader filters, right? The results: Attached is an animated GIF. The first shot of a 1000x150 mm rock sample is taken in visible light, the second one in UV light with Baader UV/IR Cut Filter. On the sample there are 3 veins saturated with crude oil. In visible light, those crude oil veins appears dark brown (surrounded by the light grey rock background). In UV fluorescence, the crude oil appears yellowish - brown (while the rest of the rock sample appears deep blue), that is the classic oil UV fluorescence signature. The scans are not actually a single picture, but they were obtained by stitching together slices representing about 5mm of sample (about 200 pictures stitched together to cover the entire 1m length of the sample - our setup does this automatically, virtually in real-time). The third frame of the GIF is a detail picture (mostly purple) that shows how that UV picture would look like WITHOUT Baader UV cut filter. As we can see, the faint fluorescence light we’ve seen in the UV scan is overpowered by the reflected 365nm UV excitation light so a UV cut filter to eliminate the reflected excitation light is critical. Thank you, Baader Planetarium for bringing quality products to the market! P.S.: Attached is also a detail snapshot of the camera setup. The actual camera is the one surrounded by 4 LED (those 4 LEDs are for taking pictures in visible light) while next to the camera there is a black disk made out of ZWB2 (365nm filter) that covers the UV light source (a Nichia 365nm high power UV LED). The overall setup details are available here: https://www.roscientific.com/miniperm.html
Show more
Baader Planetarium
Response from Baader Planetarium
Many thanks for the kind review! We would like to add, that the mention 39mm diameter (0,55mm thick) UV/IR Cut filter was already also a custom production for a research project and is not for sale regularly. We're glad that you were able to modify it further to fit your needs.
It was exactly what we needed, when we needed. Thank you, Baader Planetarium!
There is nothing to dislike. The filter does precisely what it was meant to.
Wolfgang Dz
Rating
00
Macht was er soll
Ein Filter, der tut was er soll. Er leistet seinen Beitrag zu scharfen Sternabbildungen oder detailreichen Jupiterfotos. Ich möchte ihn nicht missen.
tu was er soll
-
