TEC APO 180 f/7 Fluorite Apochromat

Add review
Add Question
# 1351080
€25,500.00

Price excl. German VAT tax (19%): € 21,428.57

This product is not for sale online. If you're interested, please:
  • Apochromatic triplet objective
  • Clear aperture 7" (180mm), focal length 1260 mm
  • Excellent color correction thanks to glass combined with Fluorite as a middle element
  • Surable oil spaced lens - Why an oil-spaced triplet-lens?
  • 3.5" Feather Touch Focuser of Starlight Instruments
  • incl. precision tube rings with adjustable latches

Important note:

This product is not in stock and has a longer delivery time. Therefore it cannot be sold online. If you are interested, please send us a formal inquiry incl. contact data by email.

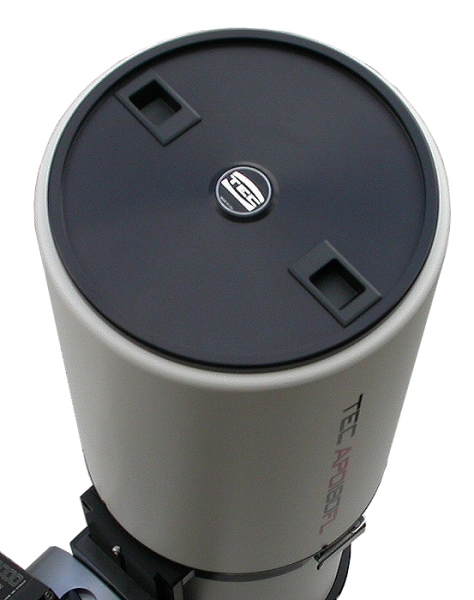

APO 180 f/7 Fluorit Apochromat

TEC 180 APO FL

It could be counted as largest portable telescope. It fits in any car and could be lifted and installed on the mount by one person. Same excellent color correction as in APO160FL.

The APO 180 has number of features that in a given combination are rarely found in one scope:

  • Precision apochromatic objective with modern coating that makes lenses almost invisible.
  • Retractable Dew Shield.
  • Light weight tube assembly.

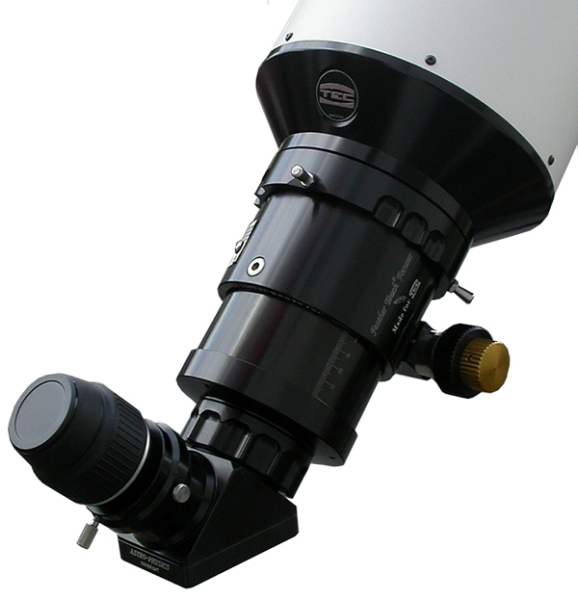

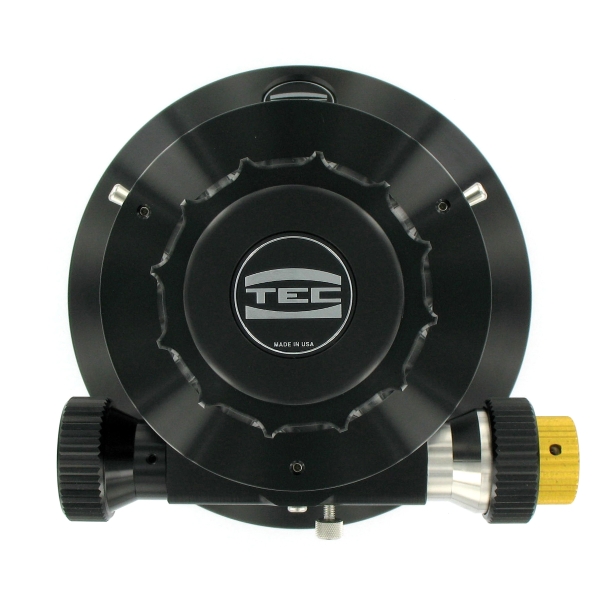

  • FeatherTouch 360° rotatable focuser with coarse and fine focusing
  • Collet type eyepiece holder
  • Precision tube rings with adjustable latches



The advantages of Fluriot to ED glass: less adsorption or rather more transmission

APO 160 FL Apochromat vs. APO 140 ED

Pictures taken with TEC APO 180 FL

M27
Picture: J. Mosch, Object: NEU M27, Accessories: AP GTO 900
M42, M43
Picture: J. Mosch, Object: Jupiter + Ganymed, Accessories: Baader FFC
Ganymed
Picture: J. Mosch, Object: Ganymed, Accessories: Baader FFC
Messier 17
Picture: R. Geissinger, Object: Messier 17, Accessories: Baader Filterset
Pickering´s Triangle
Picture: R. Geissinger, Object: Pickering´s Triangle, Accessories: Baader Filterset


Specifications

Clear aperture 7" / 180 mm
Focal length 1260 mm
Focal ratio 7.0
Image scale 2.7 arc min/mm
Field curvature 450mm
Resolution (theoretical) 0.66 arc sec
Focuser Feather Touch 3545
Eyepiece holder 2" Collet type
Focusing range 4.5" / 114 mm
One turn focus travel Coarse 21.5 mm / Fine 2.3 mm
Back focus distance 7" / 180 mm
Focuser load capacity 10 lb
Tube assembly diameter 8" / 201 mm
Dew shield dia. 9.2" / 234 mm
TA length (shortest) 45" / 1140 mm
OTA weight 36.5 lb / 16.5 kg
Balance point position 20" from focuser's flange
Lens coatings: Broad band 5 layers antireflection coating (BBAR)

Recommended 0.72x Quad Telecompressor # 140 5373 of Astro Physics

Reducer/Korrektor

This Reducer/Corrector reduces the focal length of the 180 FL from 1.260 mm to 900 mm and gives you a focal ratio of f/5. For a full frame camera (24 x 36 mm), this results in a field of view of 1.5 x 2.3 degree at an image circle of 50 mm, diffraction limited and free of vignetting.

Show more

TEC APO 180 f/7 Fluorite Apochromat

Product Details

  • SKU
    1351080
  • EAN Code
    4047825018915
  • Manufacturer
    TEC
  • Net weight (kg)
    16.50

Optics

  • Aperture
    180mm (7")
  • Backfocus
    7" (180mm)
  • Focal Length
    1260 mm
  • Focal Ratio
    f/7
  • Image Scale
    2.7 arcmin / mm
  • Length of tube
    1140 mm
  • Optical Design
    Apochromatic Refractor
  • Optical length (mm)
    45" (1140 mm)
  • Optical Tube Weight
    36.5lb (16.5 kg)
  • Tube diameter (max)
    8" (201 mm)

Included Items

  • Focuser
    Feather Touch 3545
