TEC APO 160 f/7 Fluorit Apochromat
APO160FL - is the next step in size after APO140ED, keep in mind there is quite a difference in price here for the improvements in color correction. This scope by style is a scaled version of the APO14O, but of different optical design, is slightly longer and heavier, and may require a larger mount. APO160FL has excellent color correction thanks to glass combined with Fluorite as a middle element

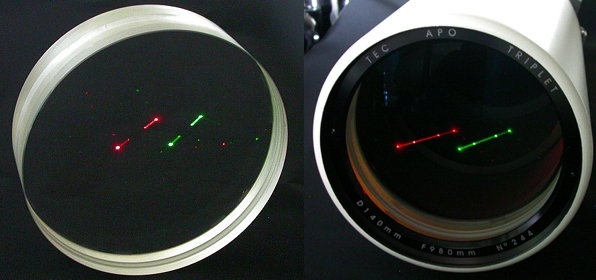

The advantages of Fluriot to ED glass: less adsorption or rather more transmission
APO 160 FL Apochromat vs. APO 140 EDThe APO 160 has number of features that in a given combination are rarely found in one scope:
- Precision apochromatic objective with modern coating that makes lenses almost invisible
- Retractable Dew Shield
- Light weight tube assembly
- FeatherTouch 360° rotatable focuser with coarse and fine focusing
- Collet type eyepiece holder
Pictures taken with TEC APO 160 FL
Specifications
Clear aperture 6.3" / 160 mm Focal length 1120 mm Focal ratio 7.0 Image scale 3.1 arc min/mm Field curvature 420mm Resolution (theoretical) 0.75 arc sec Focuser Feather Touch 3545 Eyepiece holder 2" Collet type Focusing range 4.5" / 114 mm One turn focus travel Coarse 21.5 mm / Fine 2.3 mm Back focus distance 6.7" / 180 mm Focuser load capacity 10 lb Tube assembly diameter 5.9" / 163 mm Dew shield dia. 8" / 202 mm TA length (shortest) 39.4" / 1000 mm OTA weight 24 lb / 11 kg Lens coatings: Broad band 5 layers antireflection coating (BBAR) Recommended 0.72x Telecompressor Corrector # 140 5372 of Astro Physics
This Reducer/Corrector reduces the focal length of the 160 FL from 1.120 mm to 800 mm and gives you a focal ratio of f/5. For a full frame camera (24 x 36 mm), this results in a field of view of 1.7 x 2.6 degree at an image circle of 50 mm, diffraction limited and free of vignetting.
Related Articles
-
25th anniversary of TEC - Apochromats of the top class
The "Telescope Engeneering Company" has long earned a reputation as a top-class telescope manufacturer. The family business in the US state of Colorado has been manufacturing telescopes of the highest quality in small series since the 1990s. Before TEC manufactured the first refractors in the year 2000 (regular production of APO140 started in 2002), TEC were offering Sitall mirror sets from LOMO (upto 1.4m) and MAKs from 150mm to 300mm. The distribution of these products is stopped. The three Petrunins are based on class instead of mass, therefore the delivery times are long! But the quality is also outstanding: TEC is one of the few manufacturers in the world that still masters durable oil-spaced triplet lenses. This results in particularly robust and stable optics that cool down very quickly and effectively. During the 15 years that Baader Planetarium has been importing TEC telescopes to Europe, only one oil-spaced lenses had to be renewed. We can therefore vouch for the quality and long-term stability of this oil-spaced lenses. Read more about the advantages of oil-spaced lenses for apochromatic triplet objective. In years of work, TEC has now succeeded in manufacturing all device classes with a genuine Fluorite as a middle element. In...
-
Apochromatic Triplet Objective: Why oil-spaced lenses?
Why an oil-spaced triplet-lens? The first successful experiments with oil-spaced triplet-lenses were probably done by Wolfgang Busch from Ahrensburg, who had several discussions about this with Carl Zeiss Jena, back in the days of the German Democratic Republic. Even then, this technique was far superior to the standard technics like air-spaced or cemented lenses. But it was hard to keep the joining medium inside of the lens, because of insufficient synthetic oils and many other reasons. Because of this, the lens could freeze or dry out. It took Zeiss more than ten years of research to solve these difficulties and present the first APQ-lens. Besides Zeiss, only Astro-Physics and TEC were able to produce long-lasting oil-spaced lenses. It takes some tricks and knowledge to keep the oil (if the fluid can still be called oil) inside of the lens – at least over a long period of time with always-changing temperatures. But with the necessary craftsmanship and patience, it can be done. Nevertheless, many people still think – wrongly – that an oil-spacing is especially prone to aging. This is surely true if you didn't master the technology, but we want to present a list of the pros and cons...
Additional Information
| General | |
|---|---|
| Manufacturer | TEC |
| SKU (#) | 1351010 |
| EAN Code | 4047825018953 |
| Optics | |
| Optical Design | Apochromatic Refractor |
| Aperture (mm) | 160mm (6.3") |
| Focal Length | 1120 mm |
| Focal Ratio | f/7 |
| Backfocus | 6.7" (180mm) |
| Tube diameter (max) | 6.42" (163 mm) |
| Image Scale | 3.1 arcmin / mm |
| Length of tube | 1000 mm |
| Optical length (mm) | 39.4" (1000 mm) |
| Optical Tube Weight | 24lb (12 kg) |
| Mount | |
| Included Items | |
| Focuser | Feather Touch 3545 |
