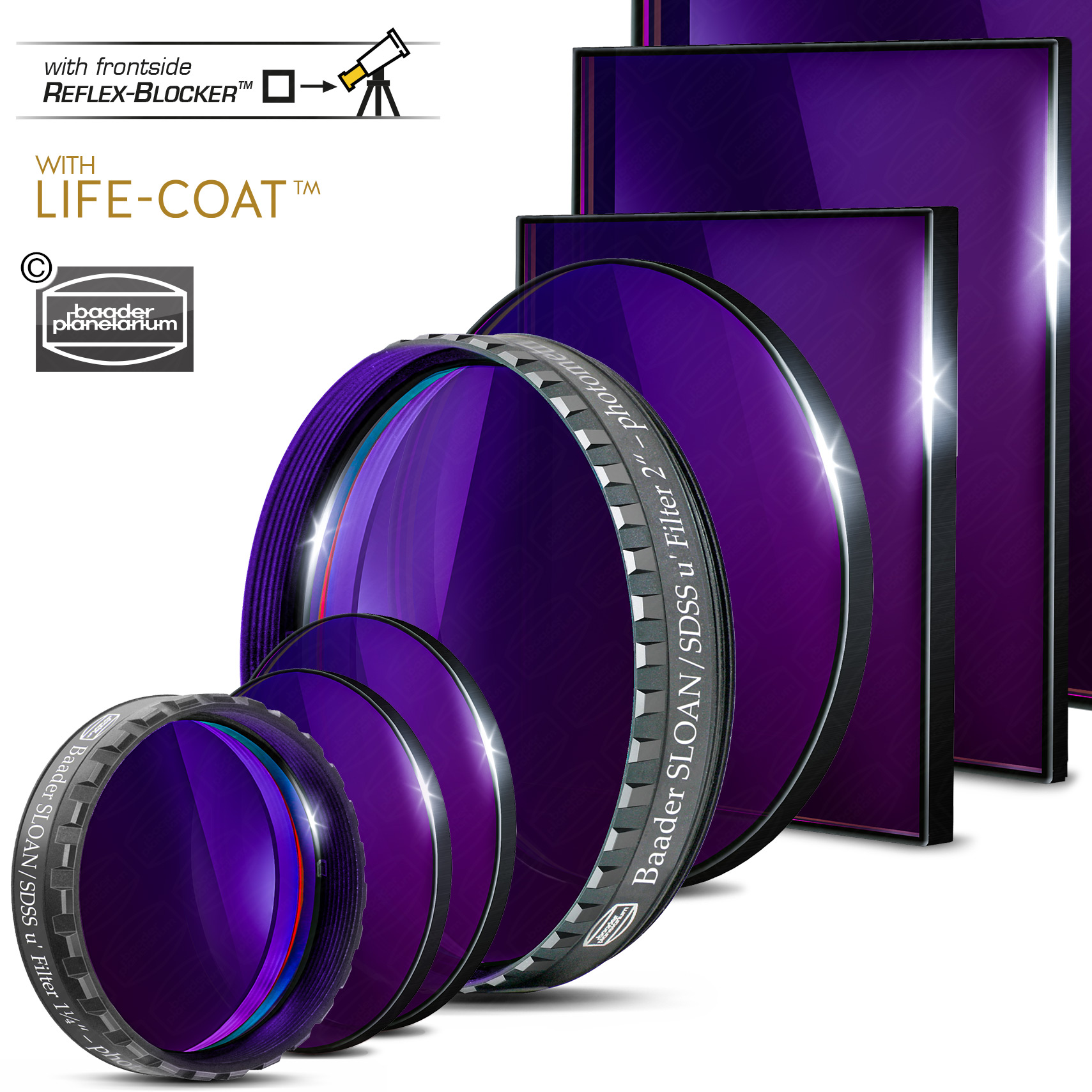

Baader SLOAN/SDSS u'-Filter – photometric

1 Review

3 Answered Questions

Please choose version to see SKU number

Price from

€154.00

Price excl. German VAT tax (19%): € 129.41

Filter size:None

Baader SLOAN-u' Bandpass Filter, suitable from f/15 to f/1.8

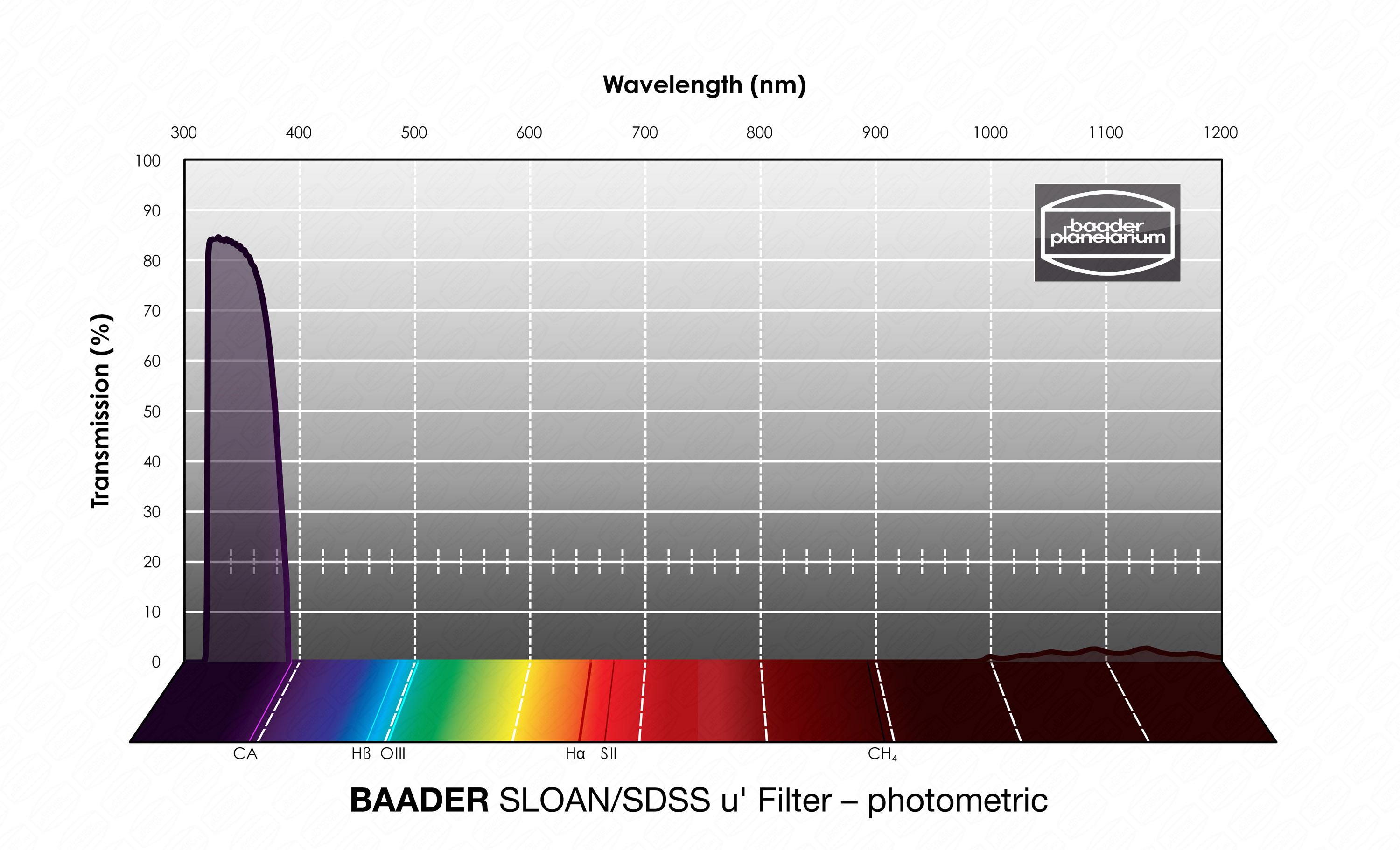

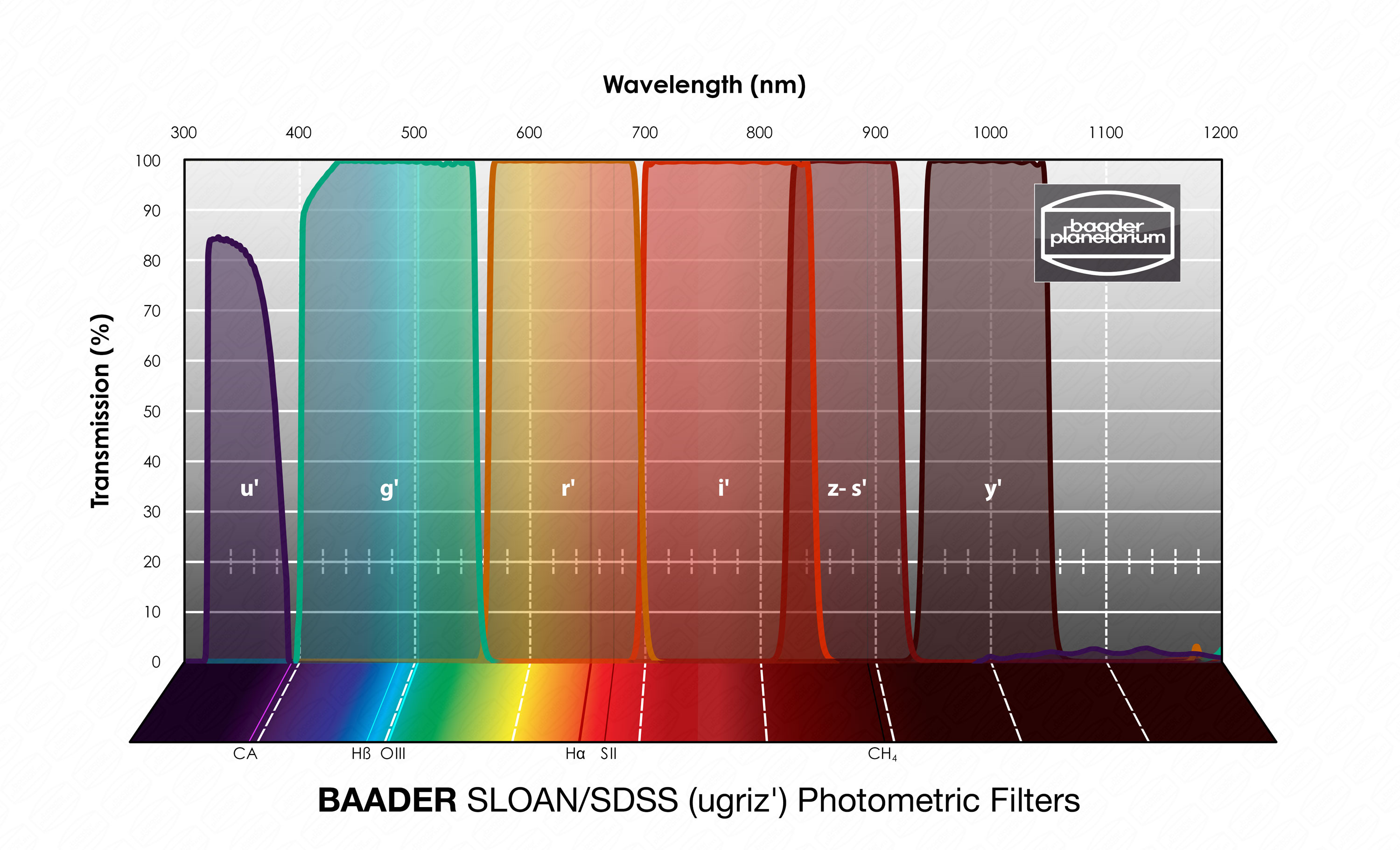

SLOAN/SDSS (ugriz’) photometric filter with transmission according to SLOAN-specification
Manufactured with most advanced ion beam coating technology / Daylight-Proof
Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
Equally suitable for modern CMOS cameras as well as for older CCD camera technologies

Create your own FILTER-LIBRARY:

This filter - except for size 100x100x3 mm - (in case of a filter set: each individual filter) comes in a Filterbox for all filters up to 50x50mm, stackable on all sides (#2459253 , € 7,- ) , to create your individual "filter-library", offering a secure place and immediate access for all Baader-filters. Putting this "library" into a carry bag will allow you to have all your loose filters stored safely in the field and be handy always.

This new generation of Baader Filters features:

CMOS-optimierte Baader Filter

Reflex-Blocker^™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
Identical filter thickness to existing standards, with utmost care for parfocality
Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

Further information, test reviews and image results can be found here:

Amateur Astronomers take a look through the Cloud Cover of Venus with our SLOAN Filters 09. June 2022 Michael Risch

First Light with Baader SDSS filters by S. Ziegenbalg 23. February 2022 Team Baader Planetarium

Now available: New Baader UBVRI and SLOAN/SDSS (ugriz’) Photometric Filters 12. October 2021 Team Baader Planetarium

New CMOS-optimized Baader Filters 08. May 2021 Team Baader Planetarium

Baader SLOAN/SDSS u'-Filter – photometric

Technical data not yet specified
Please choose product variant from dropdown above to see technical data of your chosen product

Customer Reviews

5.0

review

Tell us what you think about this item!

Top customer reviews

Rolf_1959

2023-08-11 05:40:27

Rating

Venus im UV-Filter

Meine bisherigen Aufnahmen der Venus zeigten sehr einen harten Kontrast. Ein Sternfreund empfahl mir, es mal mit einem UV-Filter zu versuchen. Auf meine Anfrage, ob meine Planetenkamera QHY462-III C im UV-Bereich überhaupt noch empfindlich genug sei, hat mir prompt die BAADER-Hotline u.a. diesen Filter für die Kamera empfohlen. (Danke für das schnelle und umfangreiche Feedback). Hier das erste Ergebnis leider nicht unter optimalen Bedingungen (die Venus stand bereits sehr tief, bei leichter Bewölkung). Aber dennoch kann man deutlich erkennen, dass der Kontrast hier deutlich besser ist.

Preis-Leistungsverhältnis passt perfekt in das UFC-System, und besonders: Die individuelle Beratung durch die Baader-Hotline per Mail.

Alexander Wolf / October 21, 20261 Answer

Yes, the orientation of the filter can affect its optical performance.

You can use our Baader Filter Frontside Indicator (Black rim facing the Telescope / no rim facing the camera) to determine the correct mounting direction for our unmounted Filters: https://www.baader-planetarium.com/media/wysiwyg/filter-frontside-indicator.gif

For our mounted 1,25" and 2" filters, the filter glass is already installed in the correct orientation within the filter cell. Simply install the filter with its threaded side facing the camera.
yakar / October 22, 2026
0
0

FAQ - Team Baader / November 25, 20221 Answer

For (much) larger DSLR lens sizes up to 100 mm aperture you might consider our 100x100x3 mm square photometric SLOAN-Filters: https://www.baader-planetarium.com/en/filters/photometric-filters.html. Especially for work in UV, the SLOAN-U filter (#2961707U https://www.baader-planetarium.com/en/filters/photometric-filters/sloansdss-u%27-filter-%E2%80%93-photometrisch.html#425=1695) is a viable alternative to our time proven U-Venus-filters (https://www.baader-planetarium.com/en/baader-u-filter-(venus-and-uv---350nm).html") - offering a very similar transmission window but up to 100 mm sq size: https://www.baader-planetarium.com/en/sloansdss-u%27-filter-%E2%80%93-photometrisch.html There even is a clever way to hold that huge size filter in front of most any DSLR-lens by obtaining this holder and doing a minimal change that converts this holder from accepting two filters of 2 mm thickness into accepting just one filter w. 3 mm thickness - with a mere screwdriver (sorry for the german Amazon-link): https://www.amazon.de/dp/B07FL3YNHB?pd_rd_i=B08KVZ8VWT&pf_rd_p=5f9972c1-184d-4e29-822a-e867654f66c0&pf_rd_r=5T5PNXXSSA4JVTRSN3QK&pd_rd_wg=6HR08&pd_rd_w=dE1wF&pd_rd_r=e8cc1e1b-747d-4193-acdf-981d7f2e81e4&th=1
Baader Web Team / November 25, 2022
1
0

Waqas Ahmad / October 10, 20161 Answer

Our largest cell mounted filters measure 2" (50.8mm) in mechanical diameter (having a metric thread of M48). The optical clear aperture is 46 mm. In order to ease the adaptation of our 2" filters onto most camera lenses, we do produce a 2" filter-holder, to convert from the ASTRO-2" Standard (M48) into a more common photo-standard of SP54 mm ("SP"means this is not a metric thread). For adapting any cell mounted Baader 2 inch Filter onto a camera lens with 52mm front filter thread you will need: #2408166 Baader DSLR 2" Filter-Holder M48 / SP54: https://www.baader-planetarium.com/en/baader-dslr-2%22-filter-holder-m48sp54.html #2958052 Baader Lens-Adapter-Ring SP54 / M52: https://www.baader-planetarium.com/en/baader-hyperion-dt-ring-sp54m52-for-dtadapter-iiandiii-and-hyperion-eyepieces.html Based on the SP54 thread, we offer many more adapters for various camera threads, our so-called Hyperion DT-rings. https://www.baader-planetarium.com/en/catalogsearch/result/?q=sp54
Baader Web Team / October 11, 2016
53
6
