Baader Heavy Pillar (BHP), modal steel pillar with up to 600 kg payload capacity (available in 60 - 165 cm)

More Views

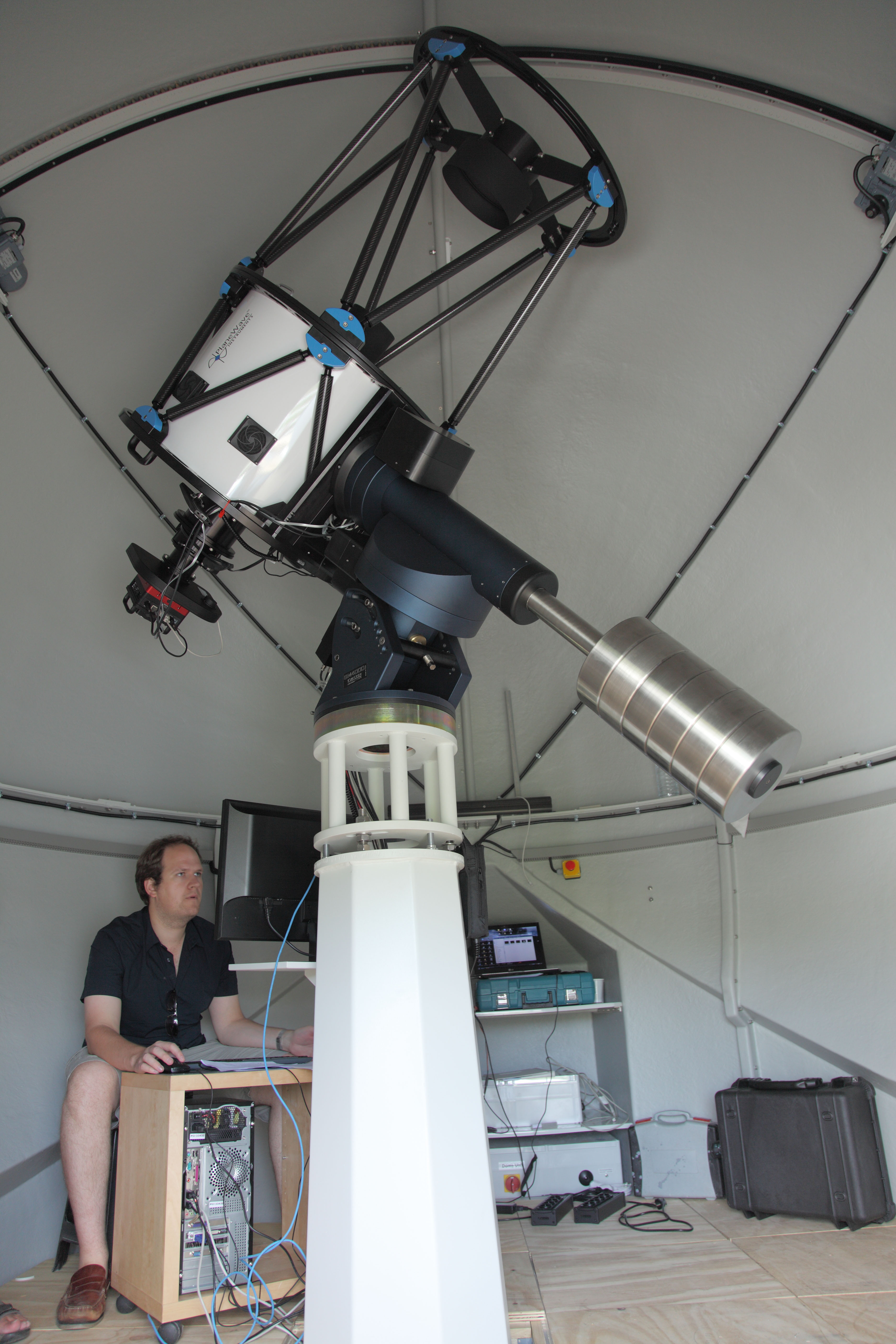

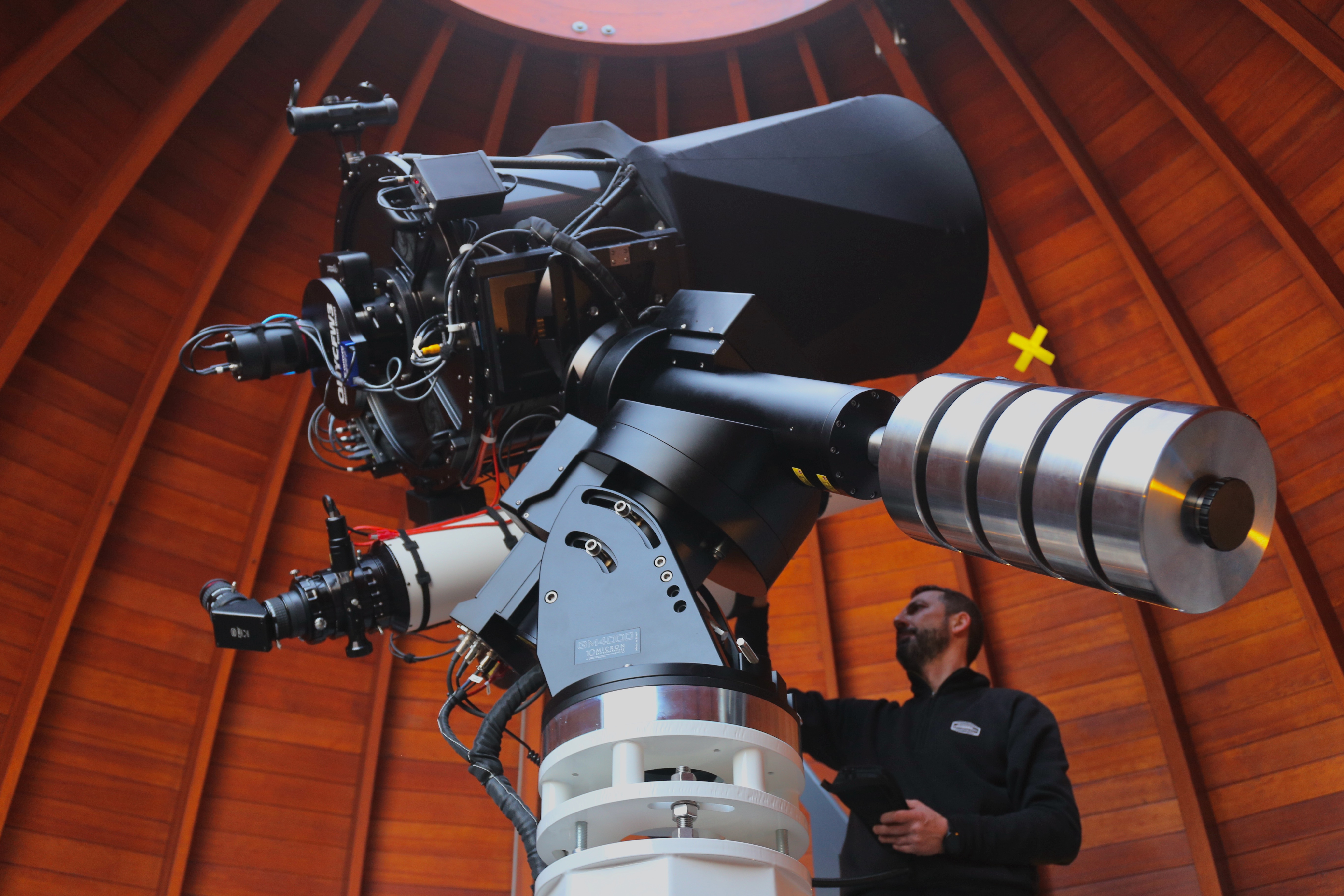

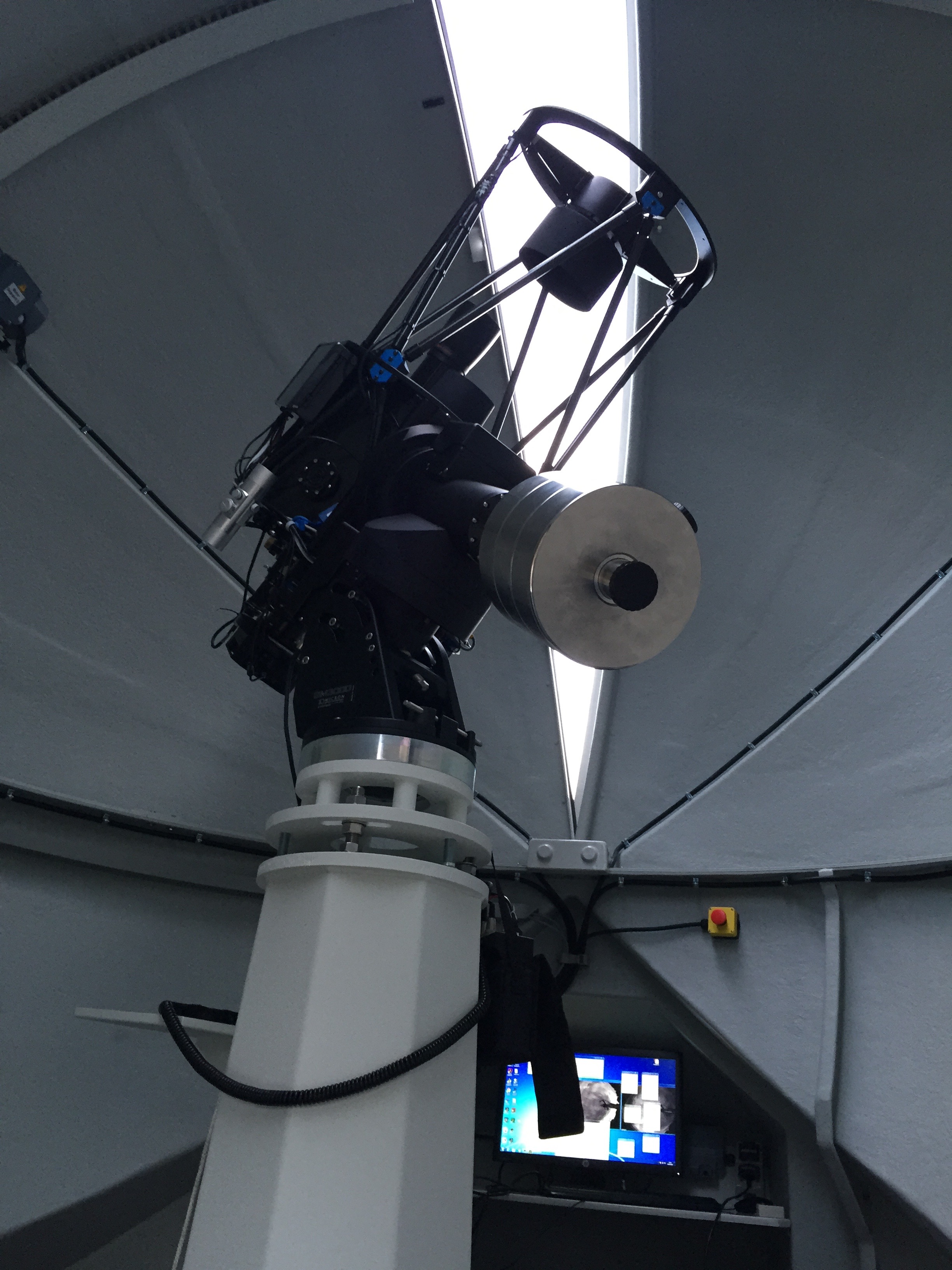

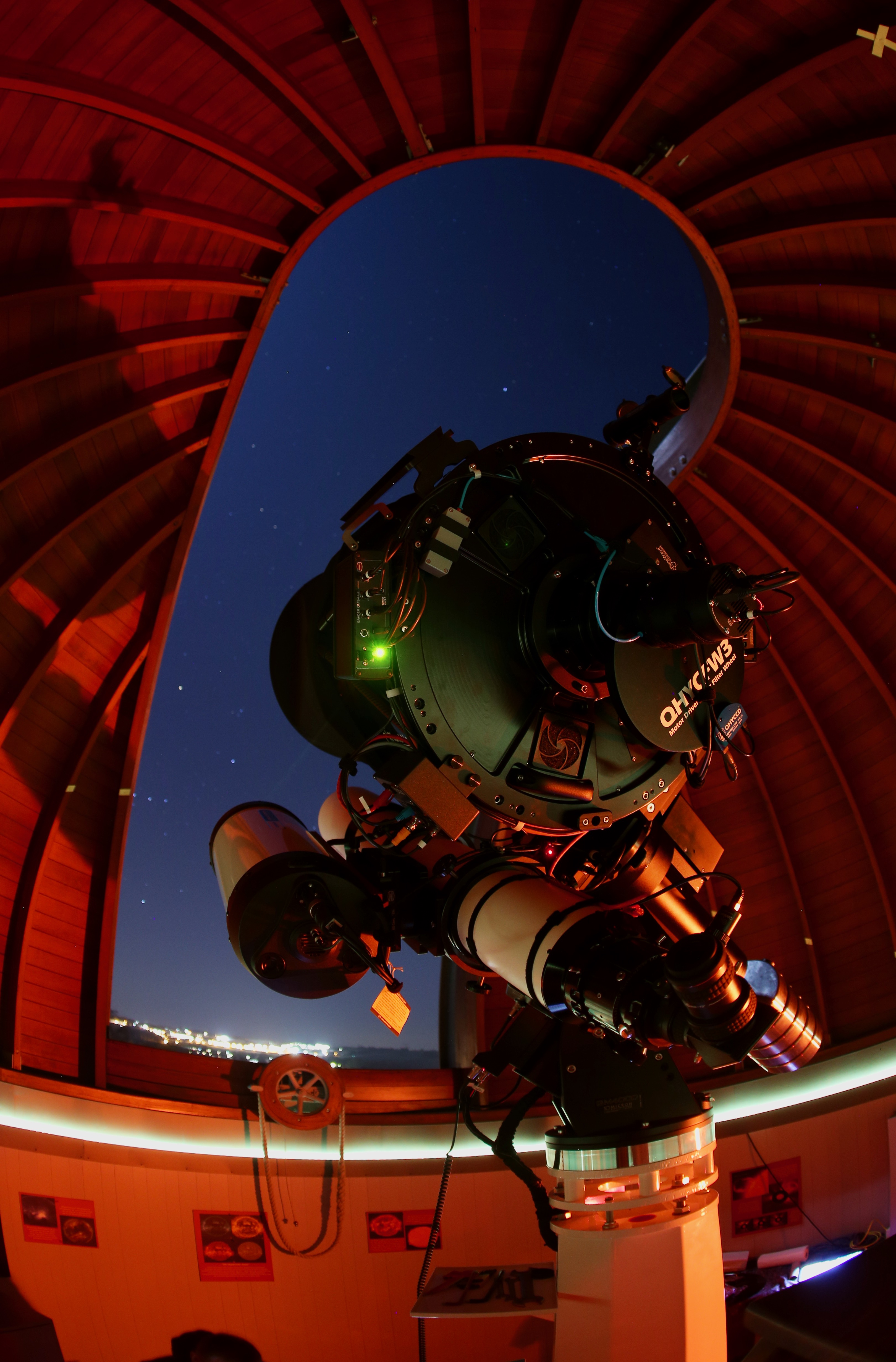

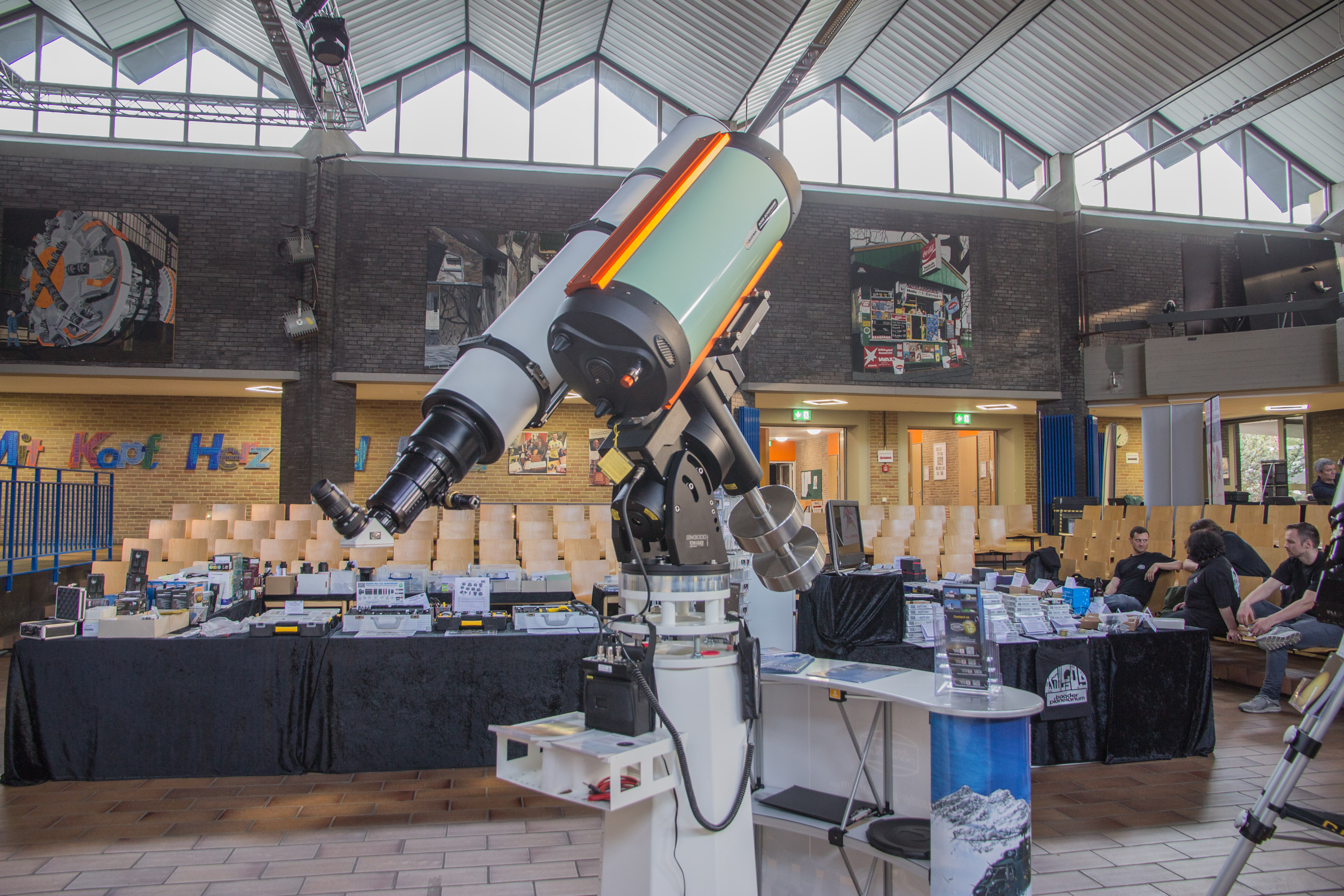

Application Images

Images uploaded by Customers

Add Your Review with Images
Baader Heavy Pillar (BHP), modal steel pillar with up to 600 kg payload capacity (available in 60 - 165 cm)

Please choose product variant below to see price and SKU number

€ 2,530.00 Price excl. German VAT tax (19%): € 2,126.05
0

  • Cone-shaped/octagonal Steel pillar
  • Payload capacity up to 600kg
  • welded Steel, actively dampening vibrations
  • with Internal tube of 3" inner width for cabeling through the pillar and mounting materail
  • available in different sizes
Important note: This product is not available online, the price is subsidized. See item description for more information.

* Required Fields

€ 2,530.00 Price excl. German VAT tax (19%): € 2,126.05

Product Questions and Answers

No questions yet. Be the first to ask a question about this product - it will be answered by other customers or an Admin.
Description

Details

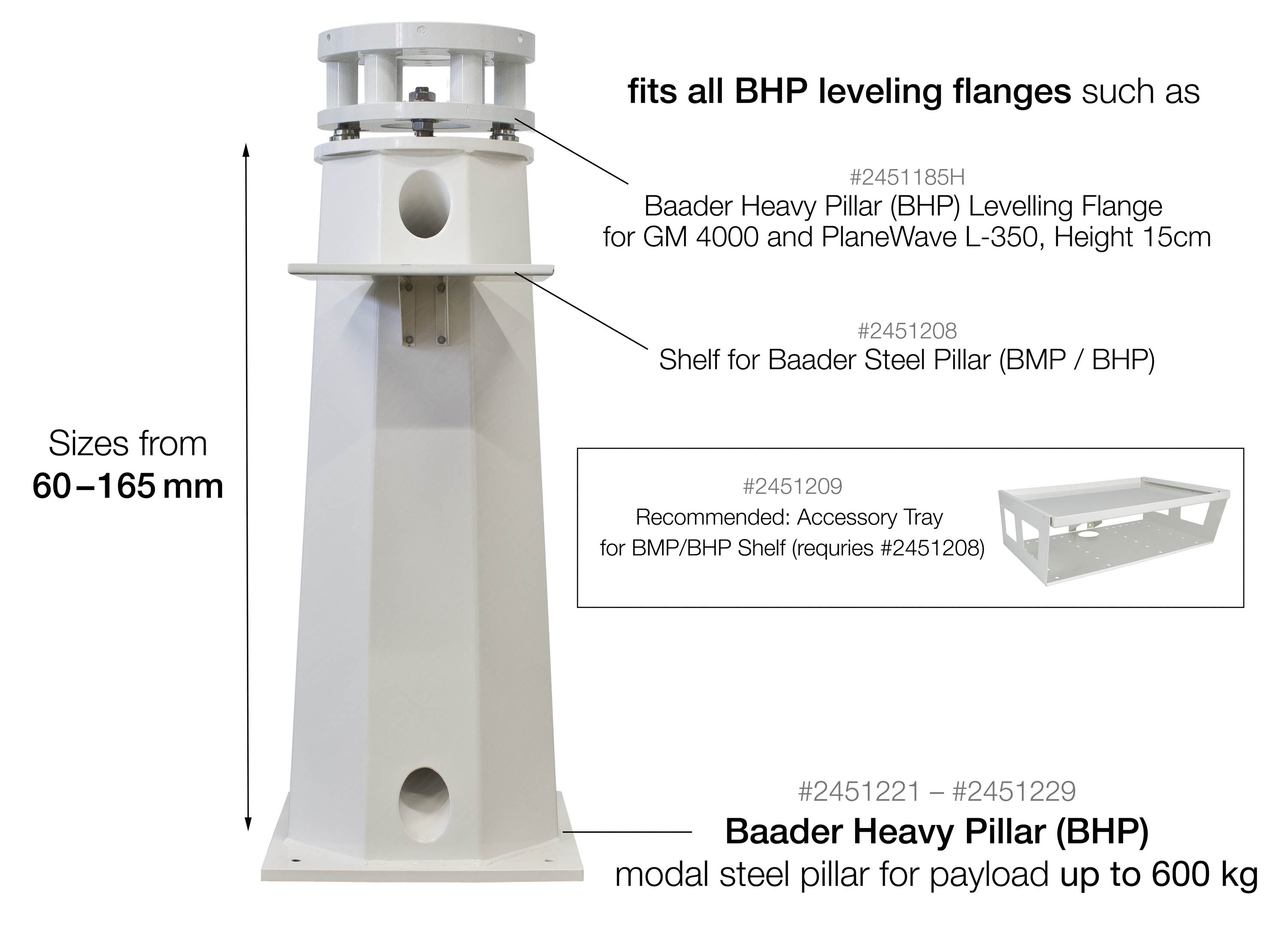

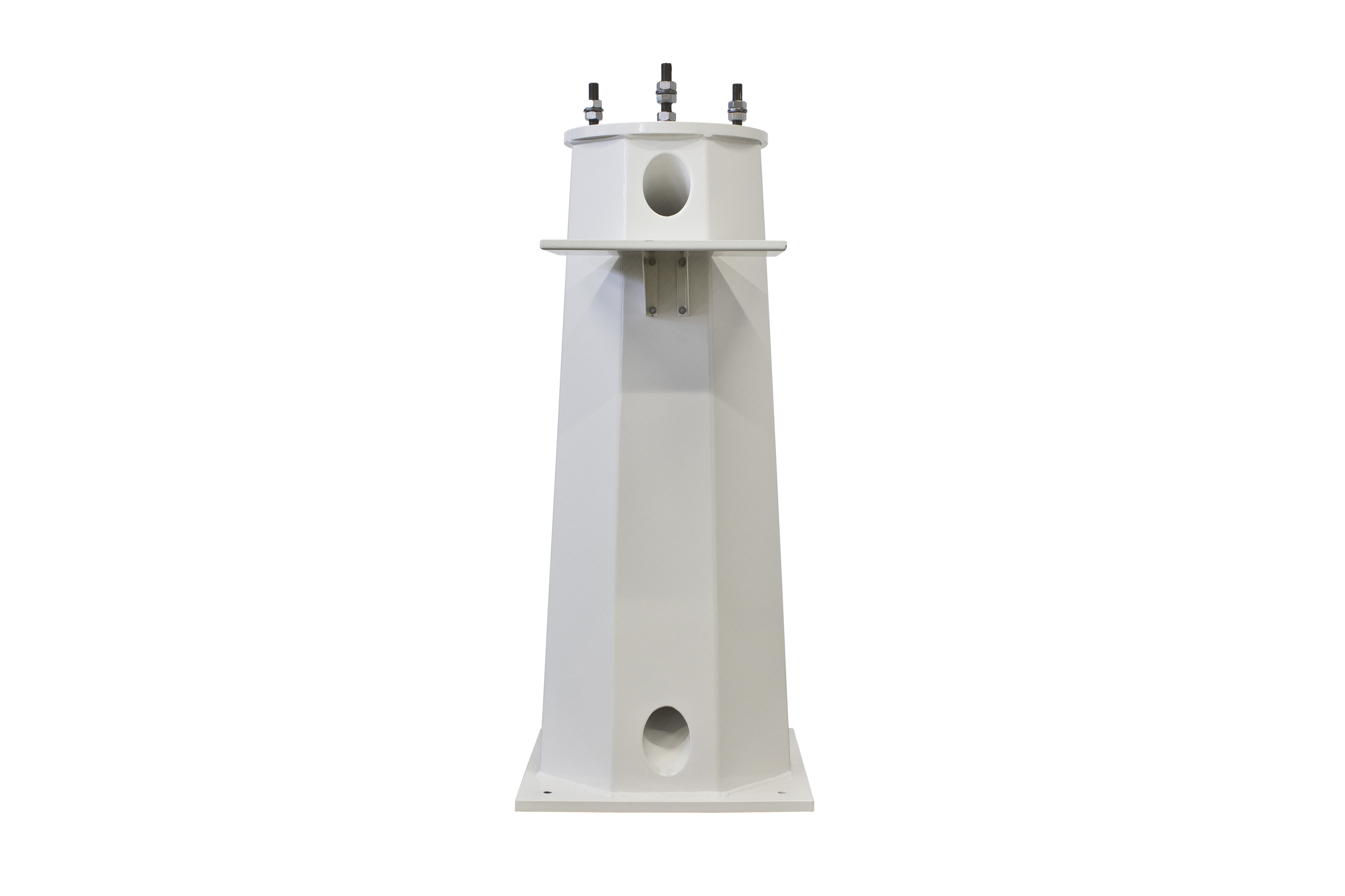

Baader Heavy Pillar (BHP) modal steel pillar

  • Payload capacity up to 600 kg
  • welded Steel, actively dampening vibrations.
  • Bottom plate 500x500 mm
  • Top plate diam. 240 mm and 1" thick
  • with 3 threaded Bolts M14 and center hole to fill the entire pillar with Quartz-sand at the erection site
  • Internal tube of 3" inner width for cabeling through the pillar

Standard heights measure: 60 / 80 / 100 / 115 / 125 / 135 / 145 / 155 / 165 cm.

Optional:

Important Notes:

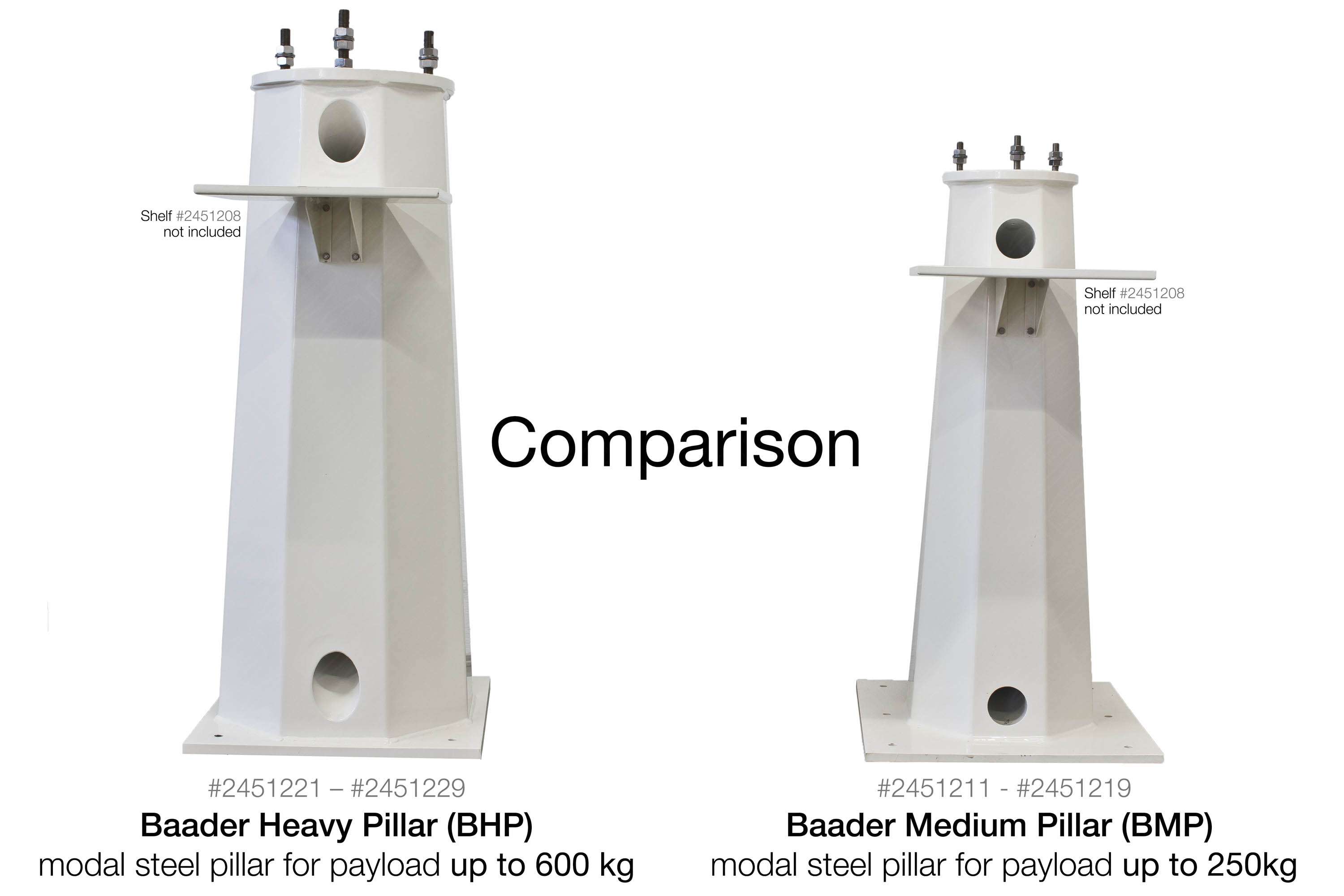

  • Baader conical steel-pillars BHP and BMP are being offered exclusively within a complete mount- or observatory project when the equipment is purchased from us directly. Prices mentioned are subsidized prices. Production of such an elaborate pillar as standalone product at the mentioned price would not be economically possible.
  • The steel pillars are firmly anchored to concrete bases prepared according to our specifications. For precise leveling of the mount ordered from us, a suitable leveling flange is manufactured in each case and mounted on top of the steel column
  • each conical steel column is made individually for each project and usually has a long delivery time. The total height of the conical steel-pillar and the leveling flange will be agreed with the customer according to the structural requirements
  • we recommend not to exceed a total height of pillar and leveling flange of 175 cm. Before placing an order, we always ask for a discussion to coordinate the structural situation.

Requires Baader Heavy Pillar (BHP) Levelling Flange for GM 3000, height 10 cm (#2451186 , € 450) for GM 3000 mount

Requires Baader Heavy Pillar (BHP) Levelling Flange for GM 4000 and PlaneWave L-350, Height 10cm (#2451185 , € 450) für GM 4000 mount

Specifications

Additional Information

Technical Data not yet specifiedPlease choose product variant from dropdown above to see technical data of your chosen product
Downloads
Reviews

You may also be interested in the following product(s)

Overall Average Rating:
1 review
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
  • Date - Newest First
  • Date - Newest First
  • Date - Latest First
  • Highest Rated
  • Lowest Rated
  • Most Helpful

1 Item(s)

Markus Mühlenbruch 16/01/2023 17/01/202314:33
  • Rating:

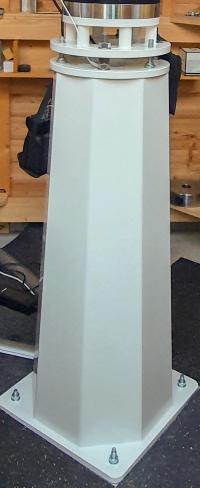

Heavy duty - you get what you pay for
Die perfekte Kombination mit Flansch und 10Mic-Montierung. Professionelles Design, handwerkliche Ausführung, 1a Verarbeitung
Säule kann mit ca. 120-150kg Sand befüllt werden und wird damit zu einem "erbebensicheren" soliden Fundament. Viel Platz für die Verkabelung, Zuführung am Sockel und Durchführung innen. 3 Stromleitungen, 4 LAN Kabel, 3 USB-Kabel.....

klasse wäre, wenn es noch eine passenden Halterung für die 10Micron-Controllerbox geben würde, die an der Säule befestigt werden könnte - Bohrungen gibt es ja schon ;-)
  • einfach professionell
