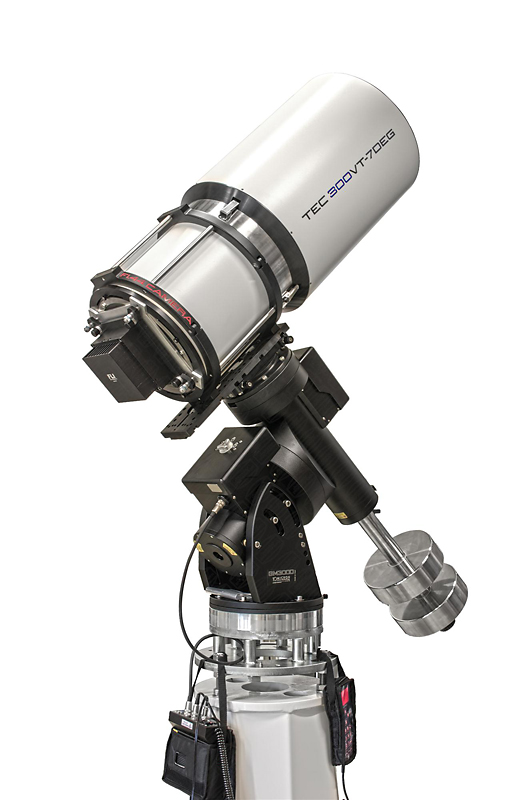

Mount not included
Mount not included

TEC-VT 300mm / 7deg Widefield Houghton-Terebizh Telescope

Add review
Add Question
# 1351140
Price:
This product is not for sale online. If you're interested, please:
  • It remarkably fast, f/1.44, which matches the field of view to a 52mm detector, and the focal surface is flat.
  • The optics of the telescope consists of five lenses and two mirrors.
  • All surfaces are spherical, an important aspect for manufacturing and tolerancing
  • Scope of delivery without focuser. FLI Atlas Focuser available on request

Important note:

This product is not available online. If you are interested, please send us a formal inquiry incl. contact data by email. We shall gladly provide a detailed offer.

TEC 300 VT-7deg Wide-field Houghton-Terebizh Telescope

TEC Astrograph 300

This telescope was designed by Dr. V.Yu.Terebizh (Moscow University)to have a very wide angular field of view, 7 degrees, with an aperture of 300 mm in diameter. The optics of the telescope consists of five lenses and two mirrors. It is remarkably fast, f/1.44, which matches the field of view to a 52-mm detector, and the focal surface is flat.

Specifications

Optical Design Houghton-Terebizh
Clear Aperture 300 mm
Focal length 425
Focal ratio 1.44
Image Schale 2.06 ?m/arcsec
Linear diameter of the field 52.1 mm
Angular field of view 7°.0
Weight 41 kg
Full length 1030 mm


A detailed descriptiion, further technichal specifications and an explanation of the spot diagram are available here.

Optischer Aufbau des TEC 300 VT
Optical tube assembly of the TEC-VT telescope
Strahlengang im 300 VT
The optical path of 300 VT

Show more

TEC-VT 300mm / 7deg Widefield Houghton-Terebizh Telescope

Product Details

  • SKU
    1351140
  • EAN Code
    4047825029324
  • Manufacturer
    TEC
  • Net weight (kg)
    39.00

Optics

  • Aperture
    300 mm (11.8")
  • Apparent Field of View
    7 °
  • Focal Length
    425 mm
  • Focal Ratio
    f/1.44
  • Image Scale
    2.06 μm/arcsec
  • Optical Design
    Houghton-Terebizh
  • Optical length (mm)
    40" (1030 mm)
  • Optical Tube Weight
    90lb (41 kg)
Show more
