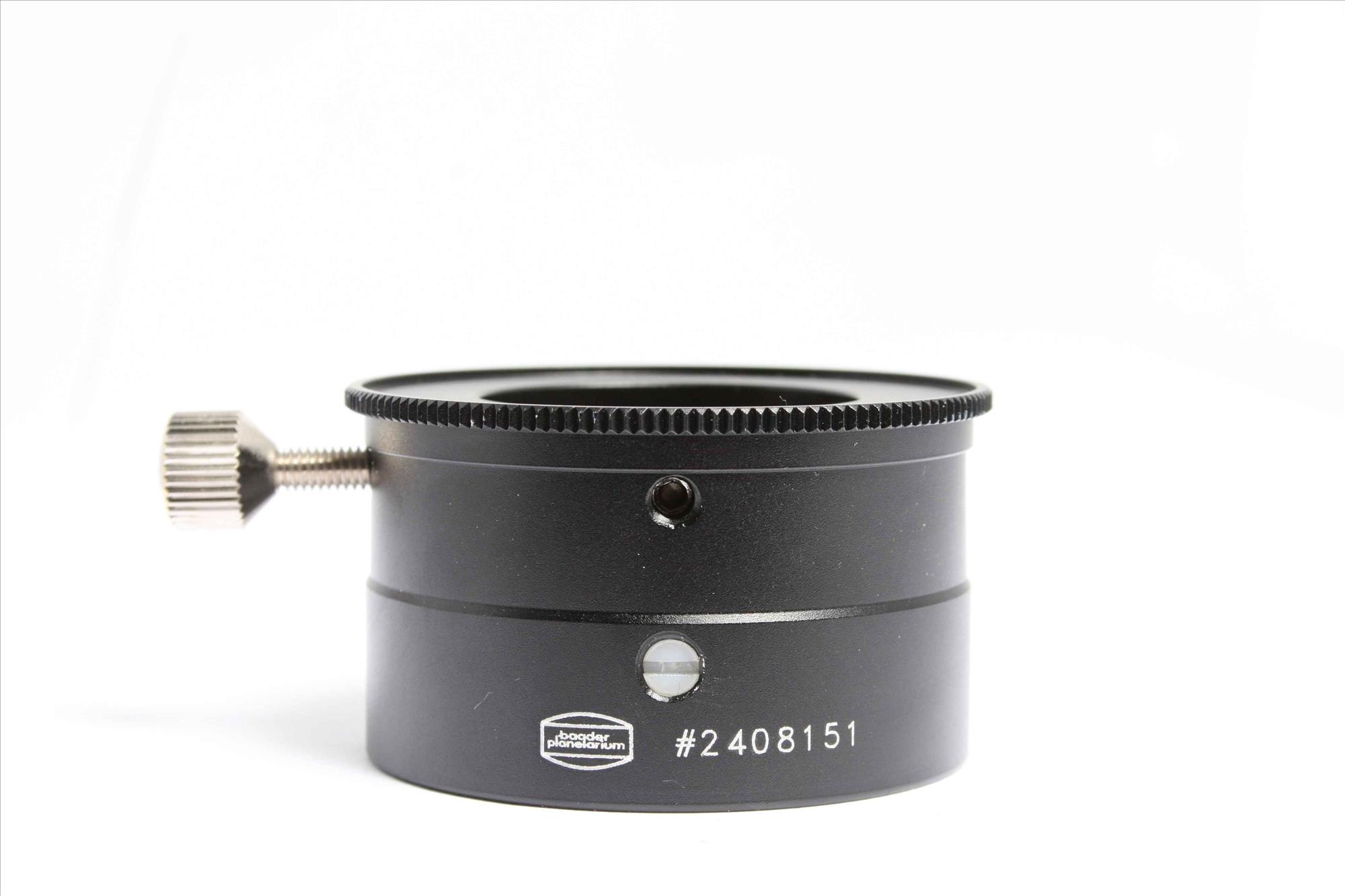

2" to 1¼" Pushfix Reducer for BDS-NT

In Stock

1 Review
3 Answered Questions
# 2408151
€52.00

Price excl. German VAT tax (19%): € 43.70

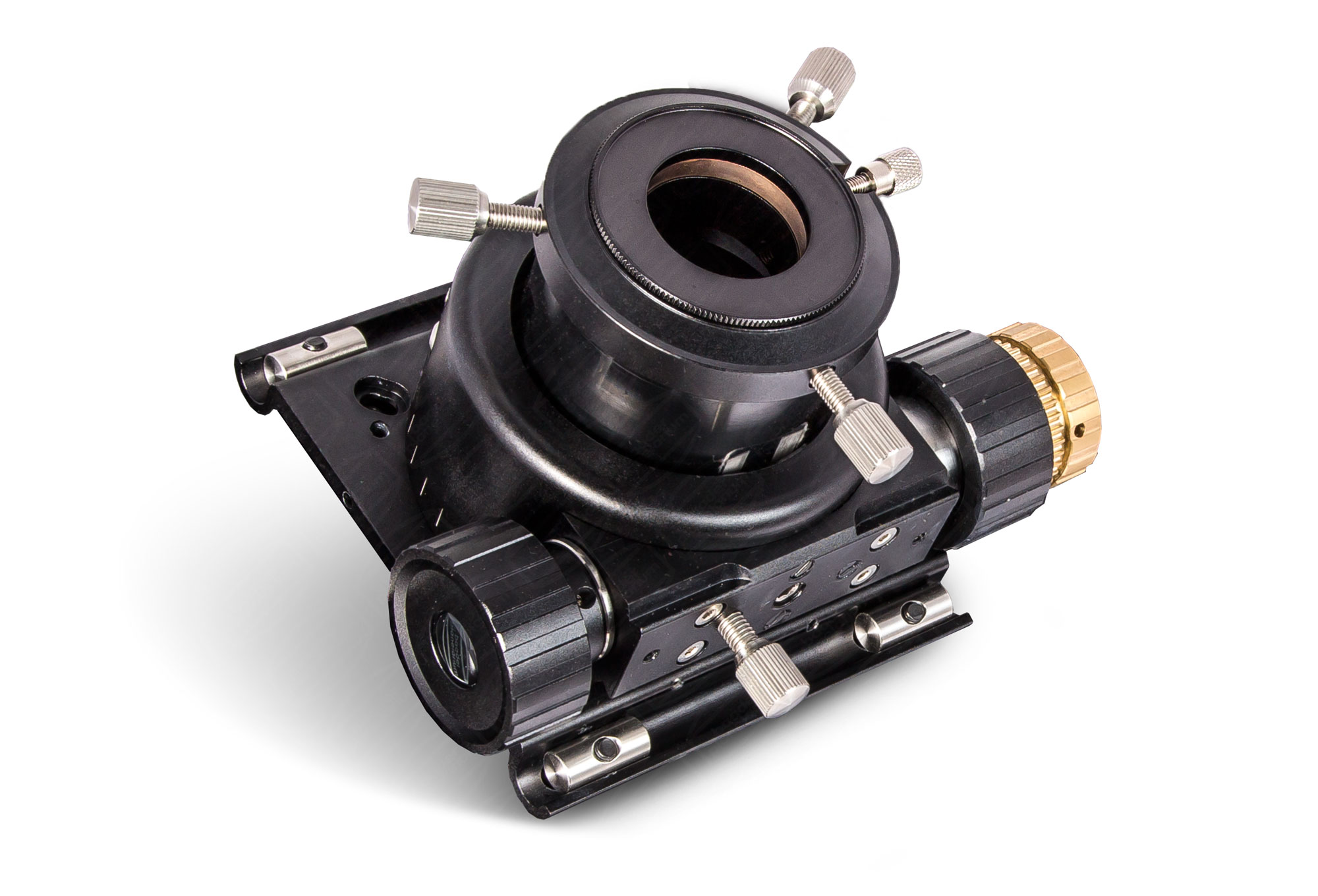

  • Ideal for Newton Focuser e.g. Baader Newton Crayford focusers with only 1mm optical path length
  • Provides three separate mounting optios for 1¼" accessories
  • Side clamping screw and brass clamping ring for secure grip. Also includes countersunk grub screws for permanent or quick release operation of the brass clamping ring.
  • The countersunk Delrin grub screws allow for the pressure to be set correctly. This acts as a quick release without relying on set screws. When an eye piece is inserted it is held securely and safely while still allowing the eye piece to be removed.

Baader Pushfix 2" / 1¼" Multi-Purpose reducing piece – only 1mm optical length!

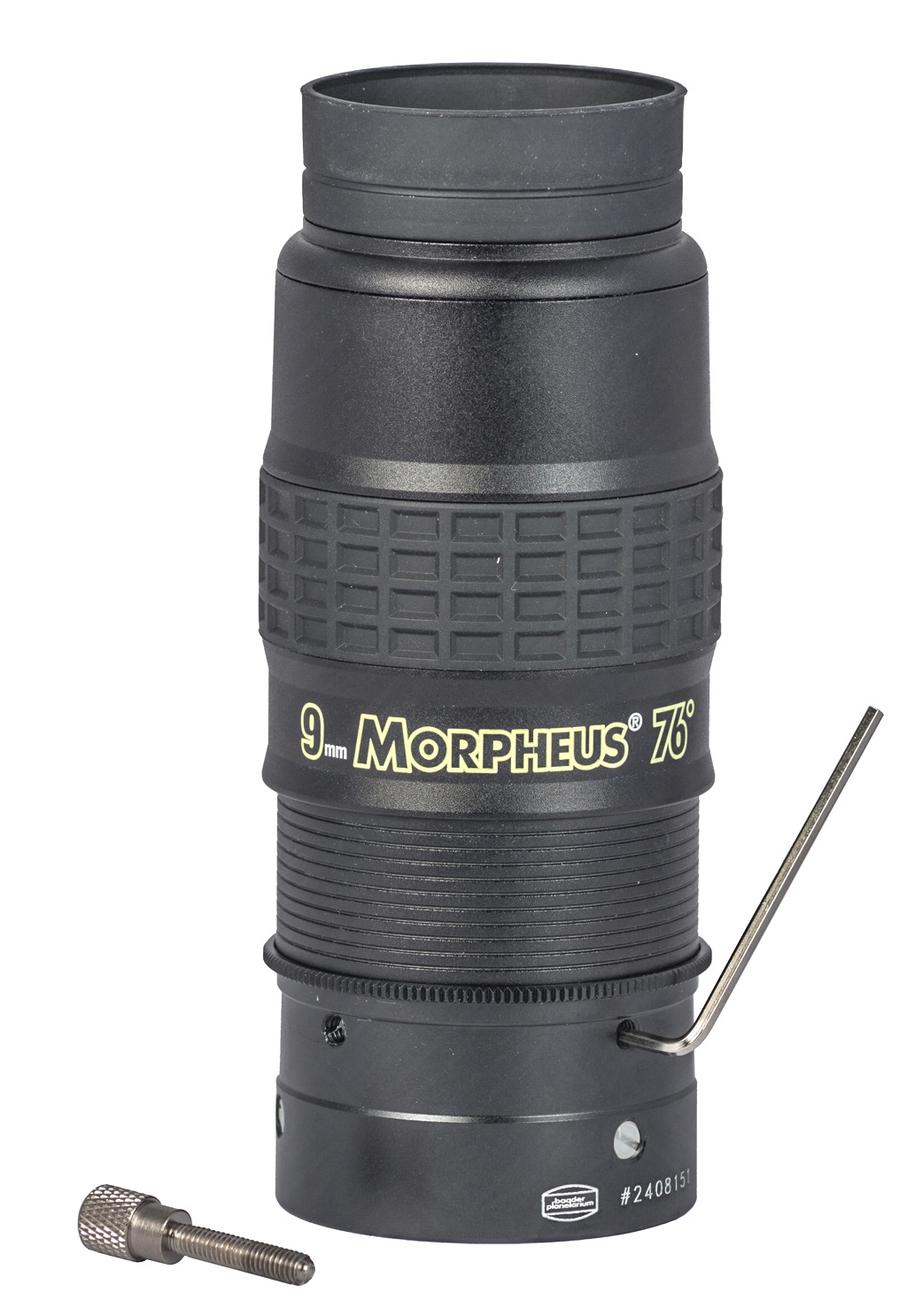

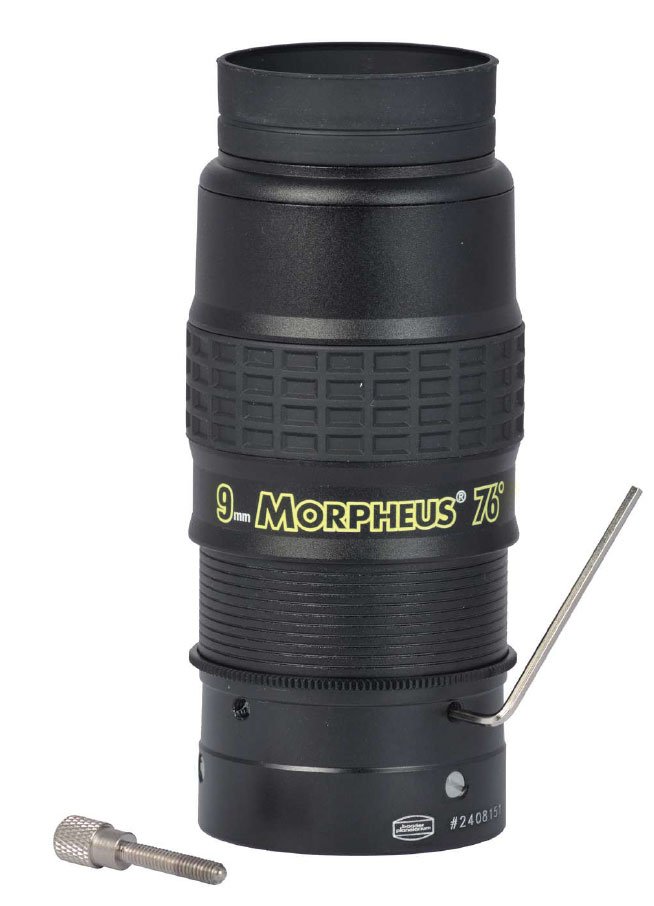

The Pushfix offers three different ways for locking a 1¼" eyepiece:

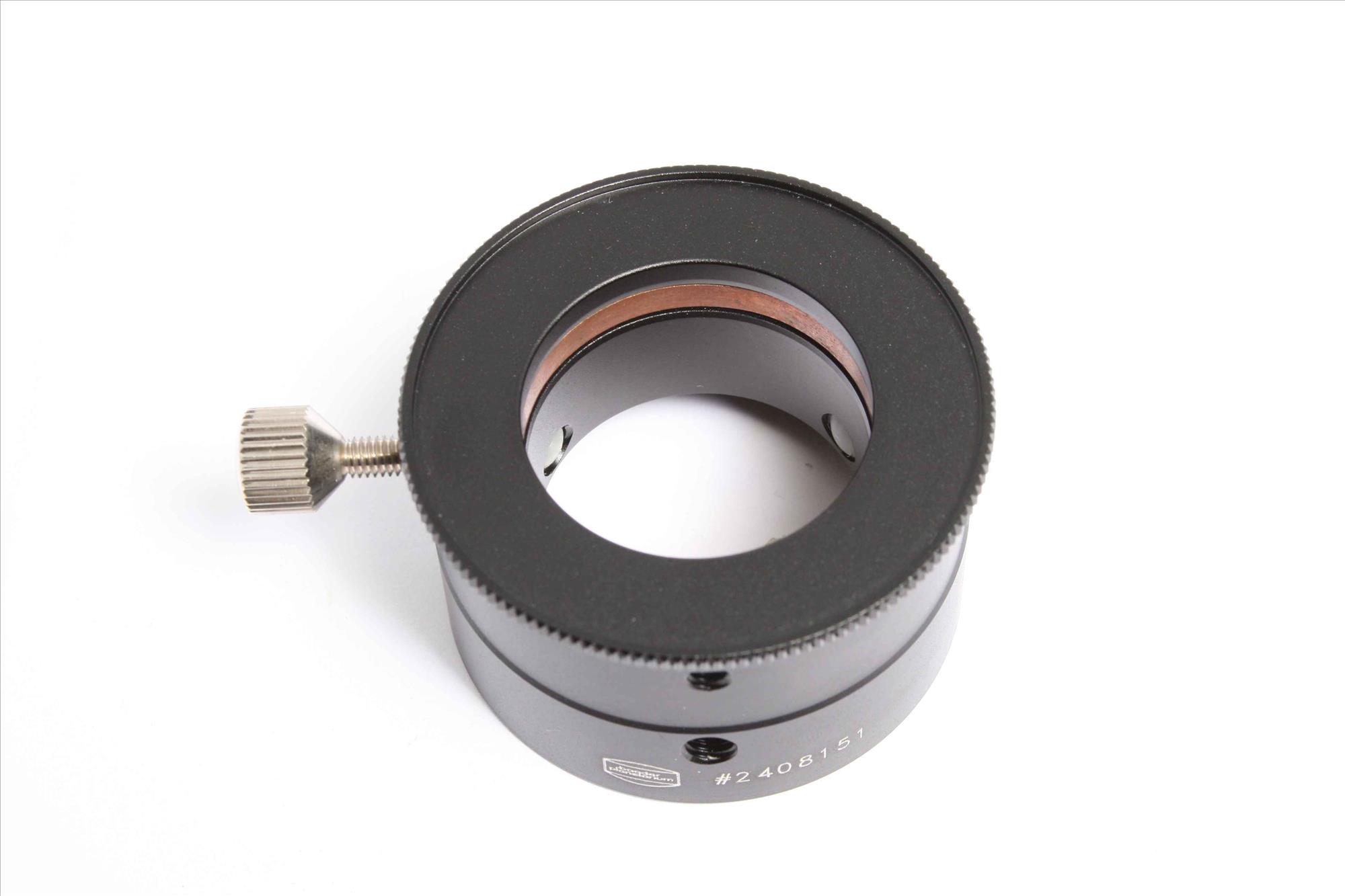

  • Classic reducing piece: clamping with thumbscrew and bronze compression ring

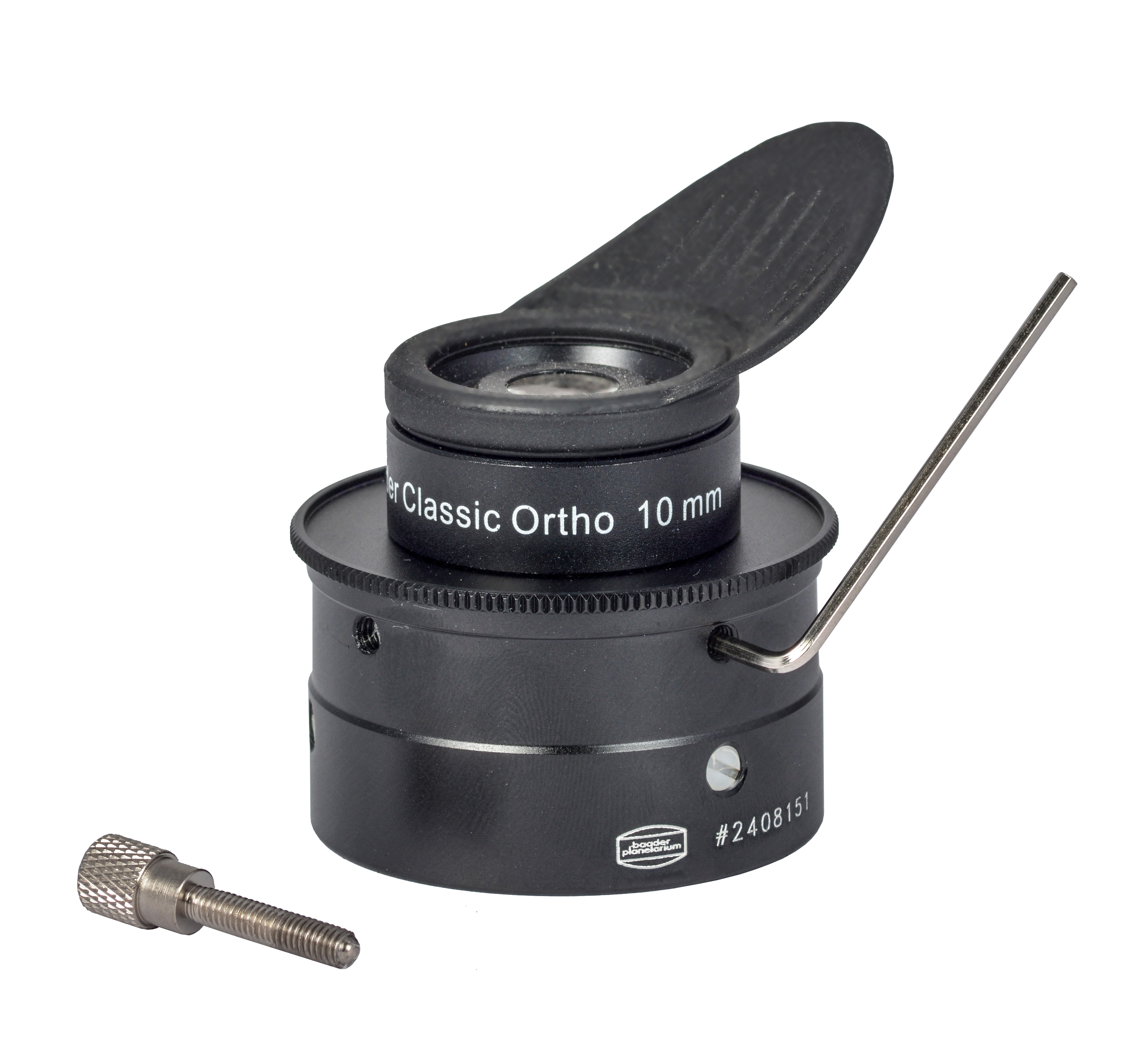

  • Semi-Permanent 1¼" / 2" conversion with counter-sunk locking screw against bronze compression ring

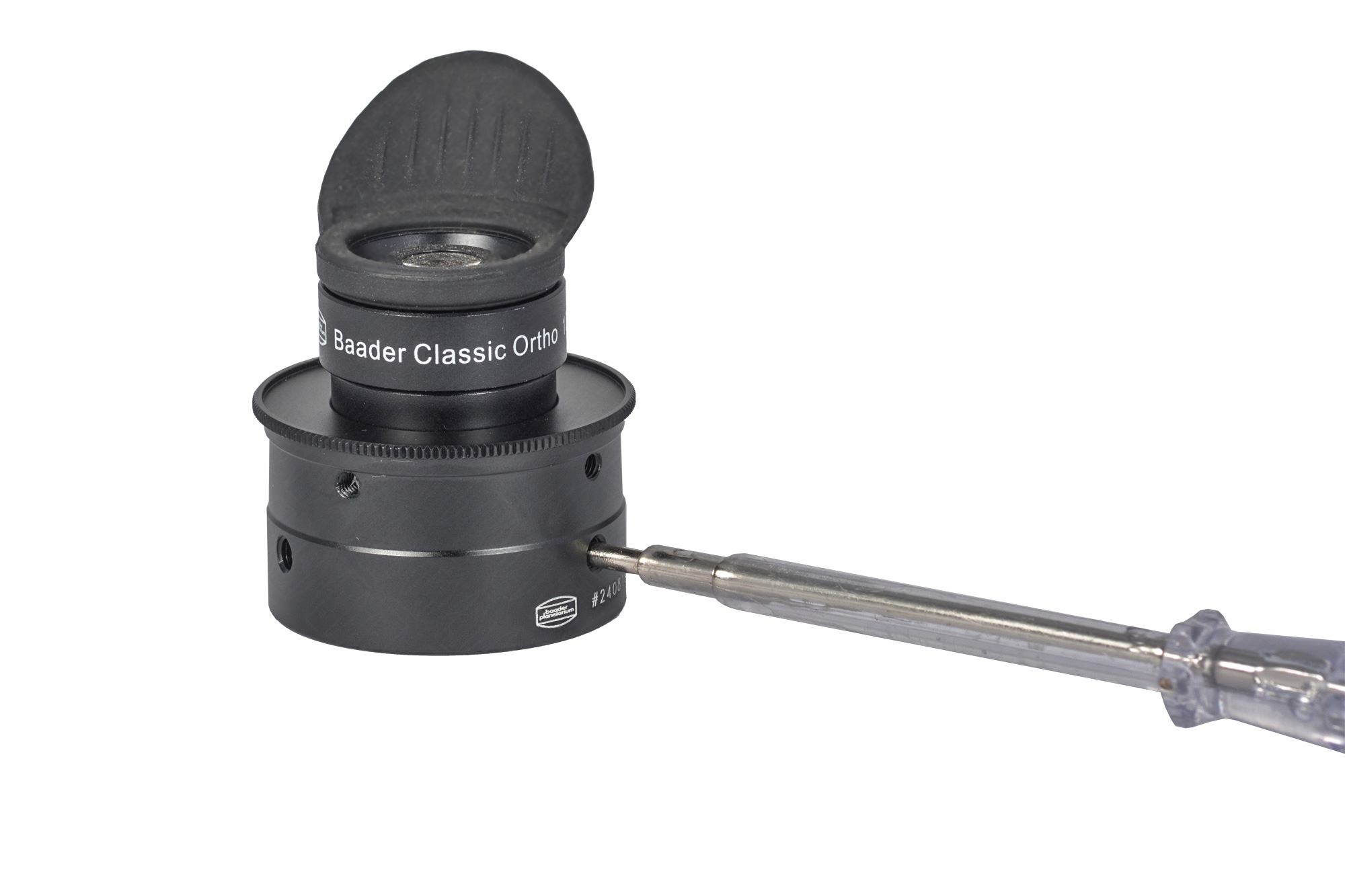

  • The Pushfix quick changer: thre radiussed nylon pressure points that can be easily adjusted. Allows pushing eyepiece with little pressure into the Pushfix adapter - holds the eyepiece without turning additional clampscrews

Please note our detailed instruction manual with images under the tab "Downloads"

2" to 1¼" Pushfix Reducer for BDS-NT

Product Details

  • SKU
    2408151
  • EAN Code
    4047825020734
  • Manufacturer
    Baader Planetarium

Ports & Compatibility

  • Clamping System
    Screw clamps
  • Compatible Brands
    Astro T-2
    UNC
    Baader Planetarium
    Celestron
  • Inner Connection (eyepiece/-camera-sided)
    ø 1¼" (31.75 mm)
  • Inner Connection (lens sided)
    M42 x 0.75 (T-2)
    M48
  • Outer Connection (lens sided)
    ø 2" (50.8mm)
  • Screw Type
    M4 clamping screw and Delrin pressure screws
  • T-2 Part #
    15A

Dimensions & Weight

  • Inner Diameter / Clear Aperture (mm)
    31,75 (1¼")
  • Net weight (kg)
    0.10
  • Outer Diameter
    54

Optical & Usage Specifications

  • Optical length (mm)
    1
  • Type of Adapter
    Nosepiece
    Eyepiece Clamp

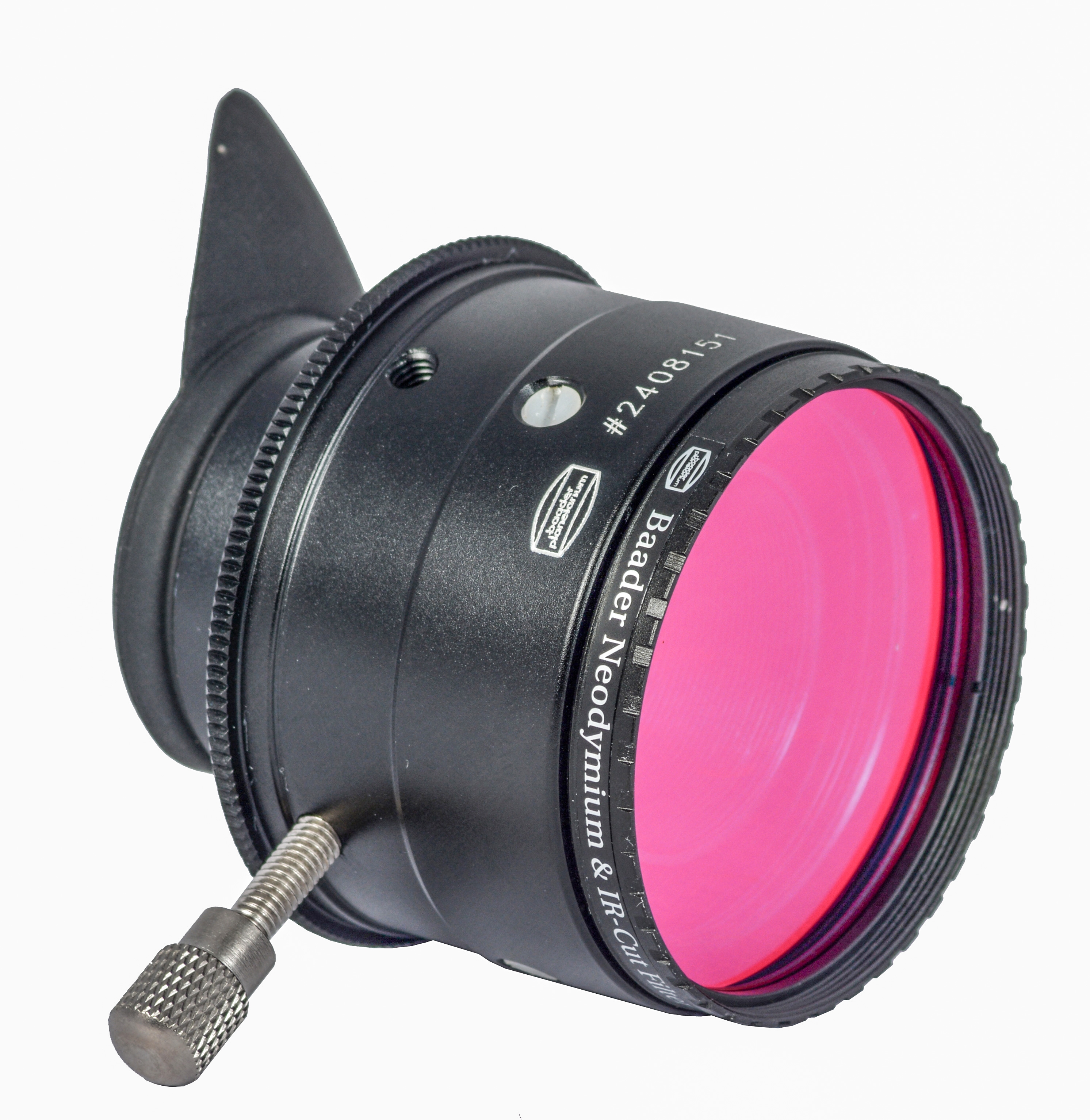

    Filter holder
    Reducing Adapter
  • Usage
    Suitable for Newton focusers
Show more
