Expansion Ring M55a to M68i

# 2458234

€ 35.00 Price excl. German VAT tax (19%): € 29.41

In Stock

Be the first to review this product

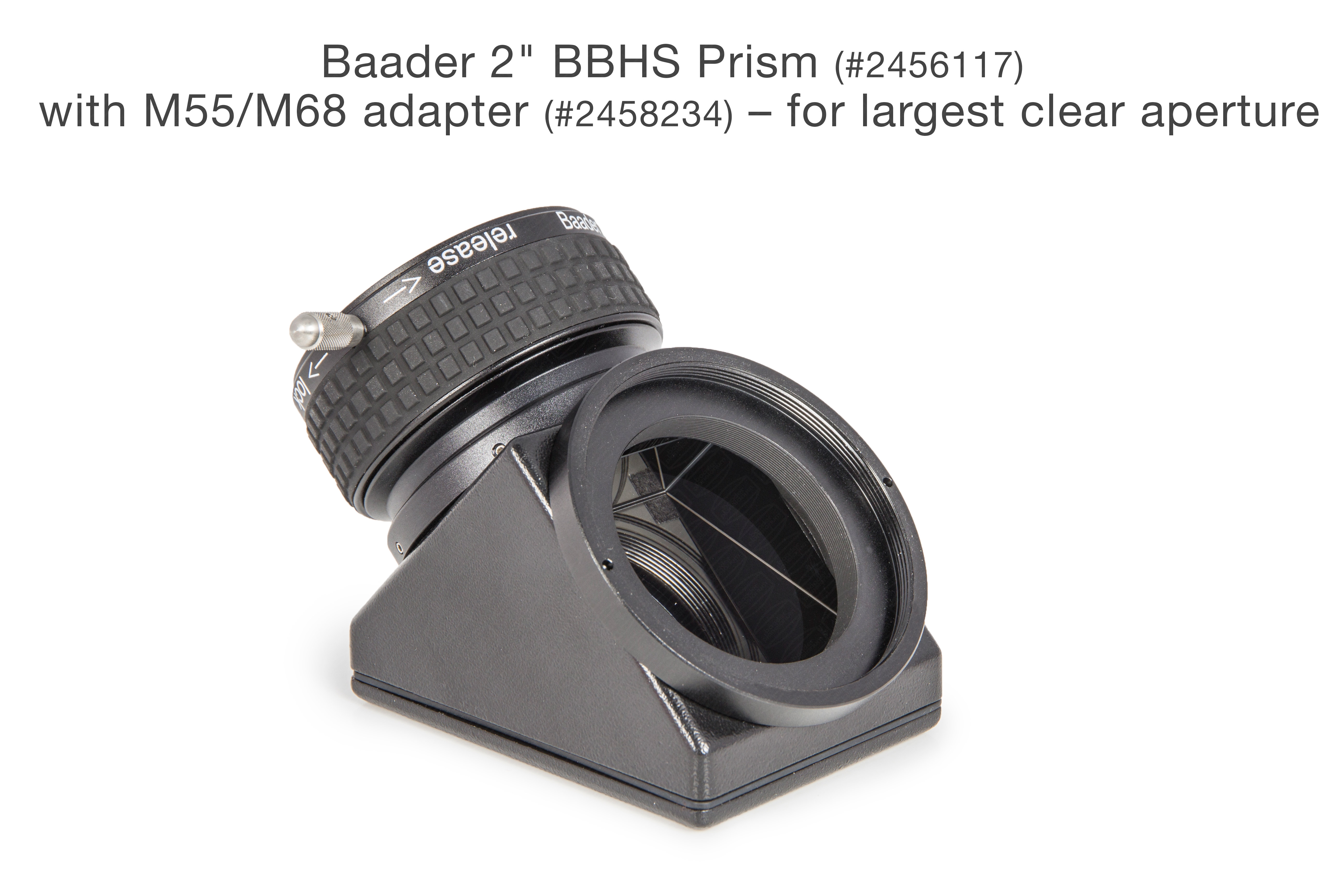

Baader M55a/M68i Adapter - converts a M55 female thread into a M68 female thread
suitable for all Baader 2" mirrors (# 2456115, 2456117, 2456100) or prisms with female M55 thread (#2456120)

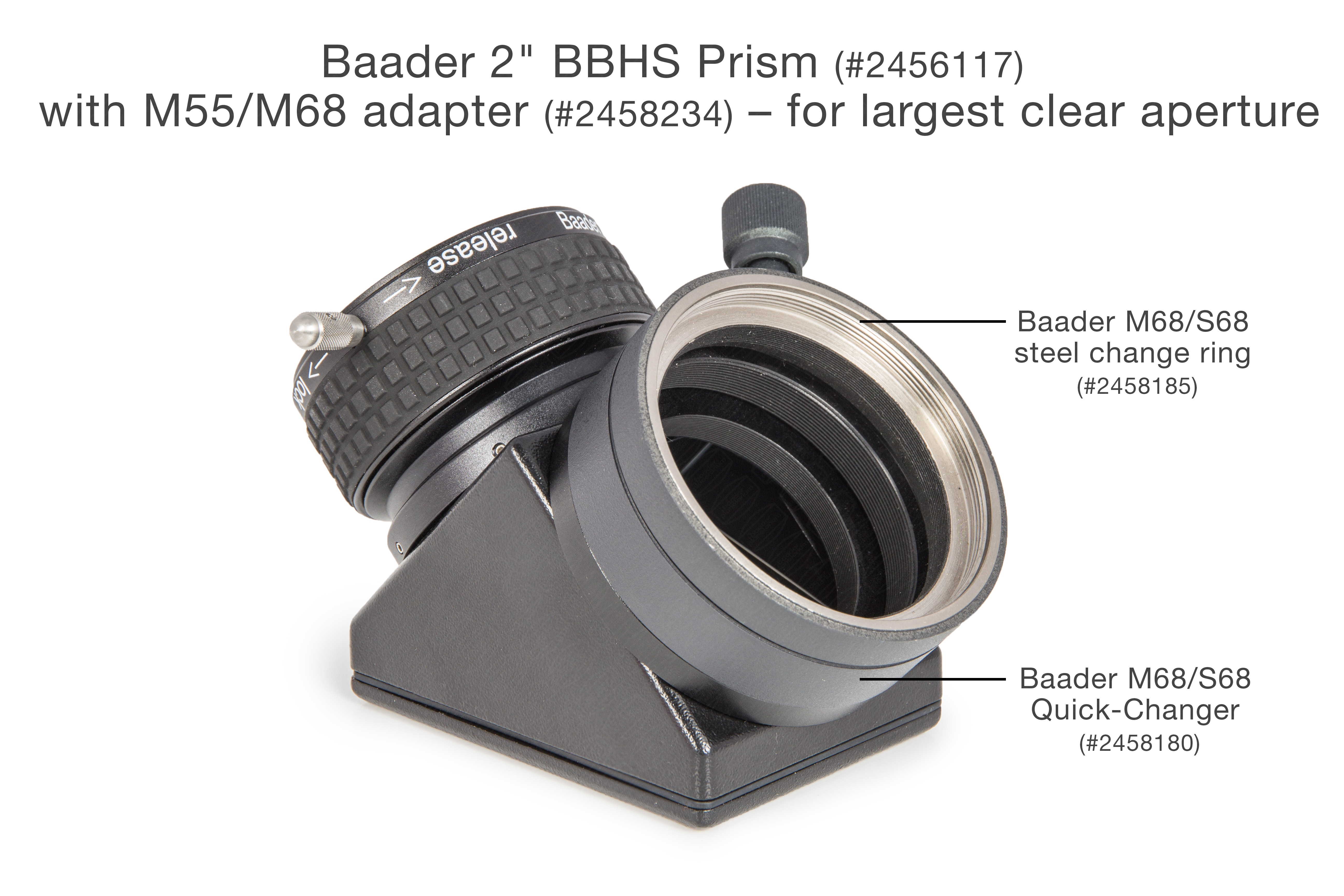

for largest aperture with 2" star diagonals and makes the adaptation of a M68 quick changer behind the star diagonal possible

Qty:

Product Questions

Hello, please is this Expansion Ring M55 thread compatible with M55 thread on BDS NT Focuser?

-6

Question by: Tomáš Mojžiš on Nov 4, 2020 11:42:00 AM | 1 Answer(s)

Description

Details

Expansion Ring M55a to M68i

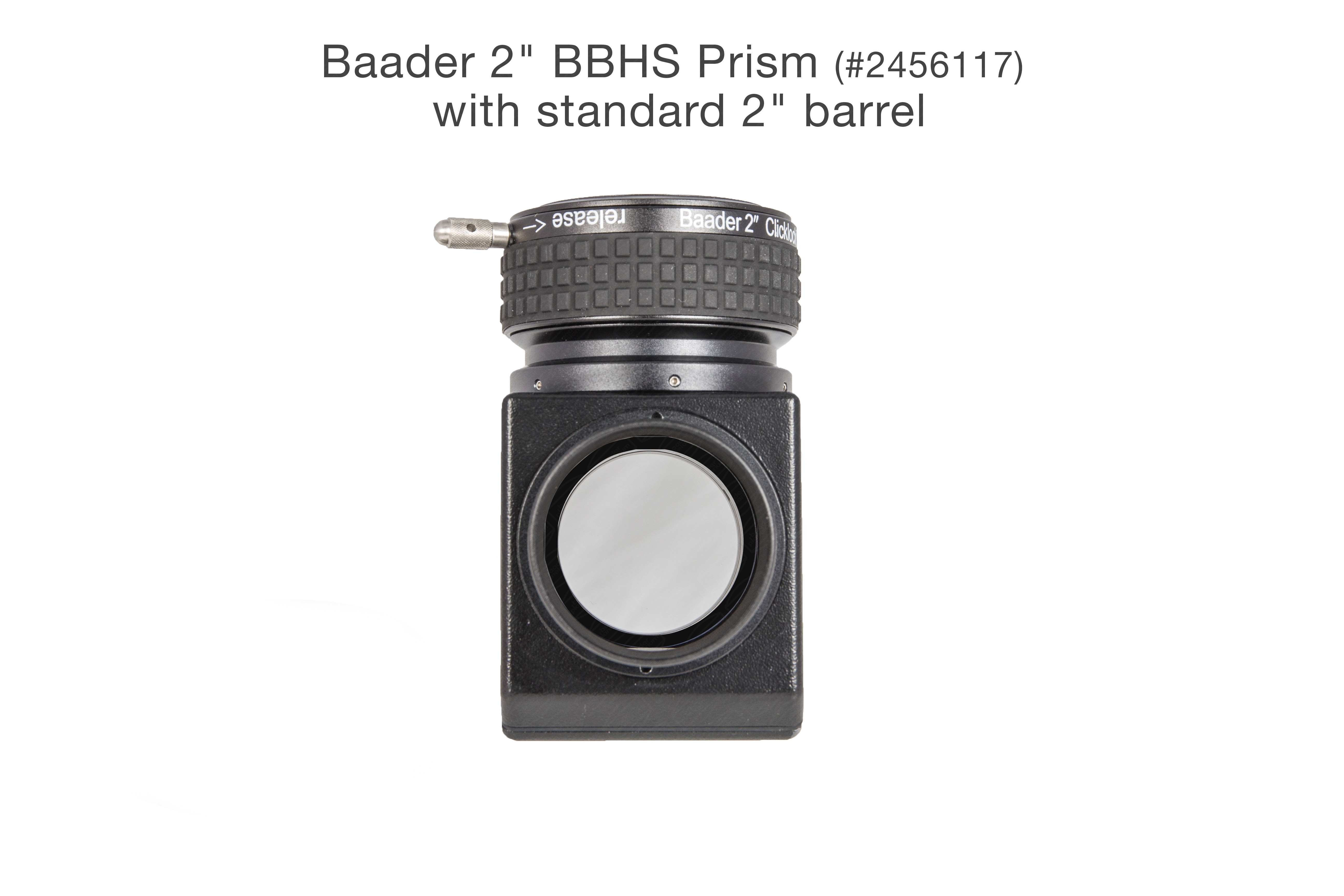

This adapter allows you to changer your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,

To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended.

Specifications

Additional Information

Manufacturer	Baader Planetarium
SKU (#)	2458234
EAN Code	4047825039187
Net weight (kg)	0.03
Optical length (mm)	8
Inner Diameter / Clear Aperture (mm)	51
Outer Connection (lens sided)	Thread, M55
Inner Connection (eyepiece/-camera-sided)	Thread, M68 x 1
Compatible Brands	Baader Planetarium
Type of Adapter	Reducing piece
