Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp

Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp

More Views

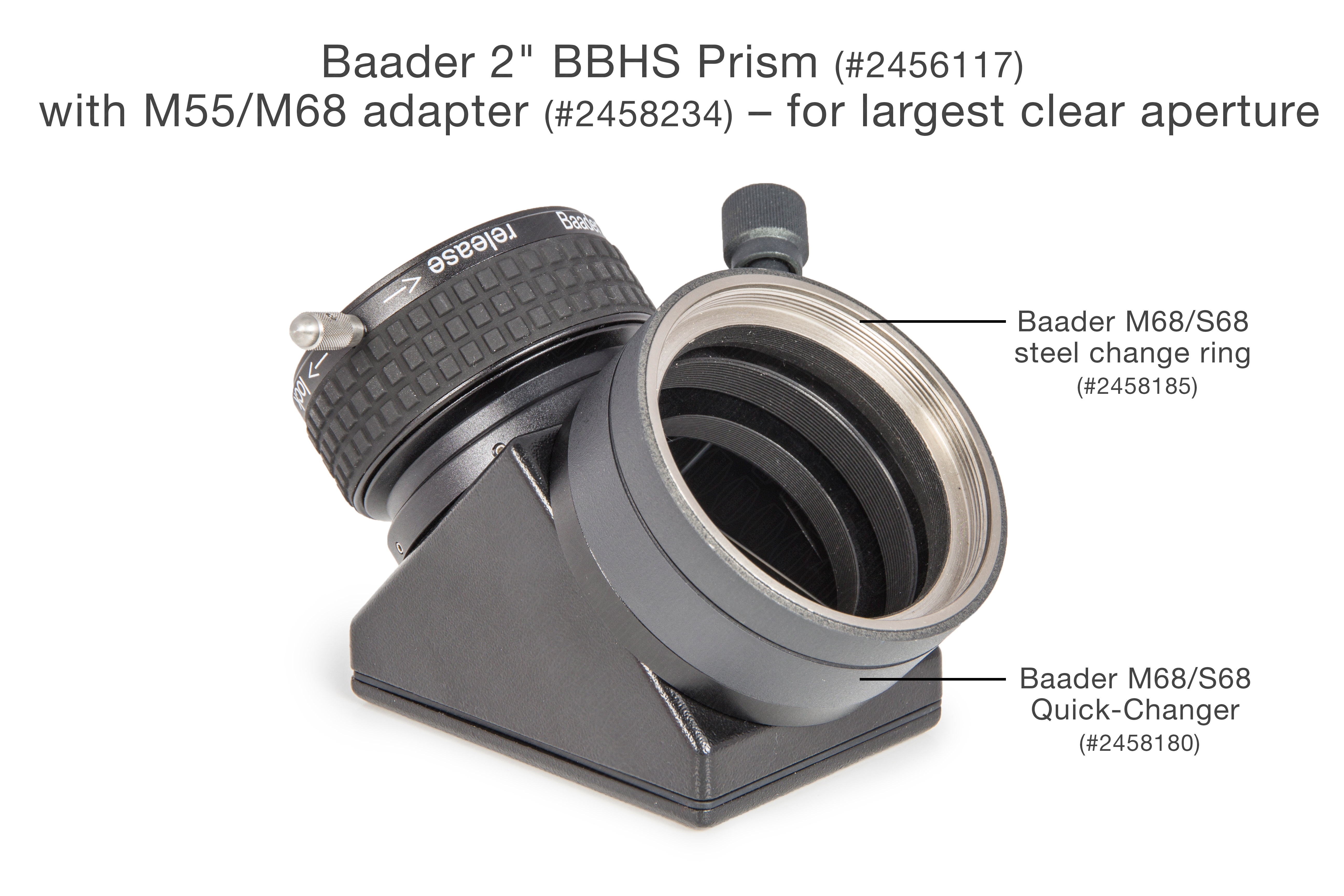

Application Images

Images uploaded by Customers

Add Your Review with Images

Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp

# 2456117

€ 505.00 Price excl. German VAT tax (19%): € 424.37

In Stock

2 Review(s) | Add Your Review

Baader Star Diagonals (T-2 and 2")

(Size: 3.8 MB)

> 400 Downloads

2" BBHS prism star diagonal (BaK4 glass) with 2" ClickLock clamp and black case.
Including Baader 2" Safety Kerf nosepiece with 2" filter thread (#2408156 , € 43) with additional grip and security from inadvertent slipping.
Provides greatest reflectance over most spectral range from 390 to 2000nm
BBHS = Broadband Hardsilver coating with dielectric protective overcoating
Much higher in brilliance than cheap dielectric coatings

Qty:

Product Questions and Answers

Do you have a question about this product? Then we would like to ask you to first look through the existing questions and answers, most likely your question has already been answered and you will get the desired information much faster this way. Your question is not listed? Then please click on the button "Ask a question".

Tell me, please, what is the best diagonal to choose for observing objects of distant cosmos and planets:
Baader 2" BBHS ® Mirror Diagonal with 2" ClickLock Clamp
Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp
And yet, the mass of them is indicated the same, is there any error here? The prism should be heavier? Thank you for your responses!

Question by: Evgeniy on Mar 28, 2017 8:13:00 PM | 1 Answer(s)

Rating of Question

There was indeed an error in the specs, the mirror weighs 451g and the prisms weighs 513g. Regarding your question which to choose:
Usually prism diagonals are better suited for long focal length refractors and mirror diagonals for short focal length mirror telescopes.
This is because the total reflection with prisms is suboptimal when using short focal lengths due to nonlinear light reduction with high angle side light rays and chromatic prism effects. Also there are shifts in backfocus and it can influence the correction of high quality optics due to the glasspath (the speed of light is lower inside a dense medium like glass in comparison to air).
On the other side mirrors don't have the same maximum reflection values like a prism's lossless physical total reflection. Also a mirror is much more sensitive to transmission reduction when exposed to the air (sensitive silver layer getting weak very soon).
But with the Baader BBHS self protecting silver reflection layer on both diagonals (mirror and prism) the backsides of both principles are well compensated, this means the mirror diagonal will not loose any light due to aging anymore and the general light angle sensitivity of the prism diagonal due to reliance on total reflection alone is compensated by the additional BBHS layer below the total reflection hypotenuse area.
So the decision between diagonal mirror or prism is not as critical as it was until now.
But still a short focal length instrument favours a mirror diagonal.

Answer by: Baader Web Team (Admin) on Mar 29, 2017 10:49:00 AM

Rate Answer

You must be logged in to answer questions.

PRISM-2Z 2456117 (2 inch diagonal with zeiss prism) I have a Celestron Evolution 9.25, with 2" visual back. Can I remove the nose piece and screw this diagonal directly onto my 2" visual back and use the lock ring LRING 2458270? Thank you. Jeff

Question by: Jeff Melcher on May 28, 2018 5:36:00 PM | 1 Answer(s)

Rating of Question

Are the BBHS coatings easy to clean? Do the coatings have a life comparable to your dielectric coatings? Do the coatings degrade over time and at what rate? Is there a difference in performance between your dielectric diagonal and the BBHS one, what are the differences and are they significant or very slight? I own an early Televue APO 4 inch refractor.

Question by: John on Sep 9, 2016 1:29:00 AM | 1 Answer(s)

Rating of Question

BBHS-mirror coatings require the same care during cleaning as you would give to the protected aluminum-coatings of a Newtonian telescope. Only dielectric coatings have the ultimate hardness to withstand any kind of mistreatment during a cleaning procedure - very similar to our Phantom-Group hard antireflection coatings applied onto our lens surfaces.

Any reflecting telescope with classic coatings can attain a lifetime of 20 or 30 years - correct handling provided. The same accounts for our protected silver-coatings, whereas the position of a stardiagonal within the optical train does provide much better protection against environmental influences, compared to the exposed surface of a primary telescope mirror.

We do regard the benefit of the BBHS hardsilver coating to be quite noticeable, compared to the reduced spectral range offered by a dielectric coating. Please check in the Internet for statements that would verify our position. Or look for the very extensive tests on star diagonals, performed by William Paolini (see tab "Downloads".

Please read more on the properties of our star diagonals and our design philosophy here: http://www.baader-planetarium.com/en/blog/baader-bbhs-reflective-properties/

Answer by: Baader Web Team (Admin) on Sep 15, 2016 8:22:00 AM

Rate Answer

-25

You must be logged in to answer questions.

Does the diagonal have an eyepiece stop?

Question by: Jan on May 25, 2018 5:17:00 PM | 1 Answer(s)

Rating of Question

Is the prism in this diagonal (#2456117) a Carl Zeiss spec prism?

Question by: Brian on Jul 12, 2017 4:56:00 PM | 1 Answer(s)

Rating of Question

It it possible to use a Morpheus eyepiece with an attached 1.25 single polarizing filter (or any other similar size Baader 1.25 filter) together with 2456117 prism, when the eyepiece is inserted in the ClickLock via its 2" barrel? Or is there not enough space between and the filter would touch the prism?

Question by: Lukas on Jan 17, 2023 12:32:00 AM | 1 Answer(s)

Rating of Question

What is the outside diameter of the nose piece? The precise inside diameter of the focusing tube on my refractor is 2.000 inches at 20 degrees Celsius +/- 0.001 inches. If it turns out that the nose piece is also exactly 2 inches, I could turn the nosepiece on a lathe. Your thoughts? What nose piece diameter would you suggest, if I had to turn it on a lathe?

Question by: John Aviste on Oct 12, 2016 9:30:00 PM | 1 Answer(s)

Rating of Question

I have a Celestron CPC 1100 EdgeHD and I am undecided between this BBHS prism diagonal or the similar mirror BBHS version.
Which one would you suggest for this sct f10?

Question by: Emilio on Mar 20, 2022 4:19:00 AM | 1 Answer(s)

Rating of Question

-3

How can best I attach the Baader 2" Prism Star Diagonal (#2456117) to my C8 Edge HD? The native back focus of the C8 is 133m, and the diagonal has already 100mm which doesn't leave a lot for barlow or reducer attachments? Thank you

Question by: Christoph Mues on Mar 20, 2021 8:46:00 PM | 1 Answer(s)

Rating of Question

-5

How come the BBHS 2" Prism ClickLock diagonal has 100mm optical tube legnth, while the seemingly identical mirror BBHS diagonal has 112mm? Is that an error?

Question by: Jan on May 25, 2018 4:19:00 PM | 1 Answer(s)

Rating of Question

-10

Do the Baader prism diagonals with BBHS coating work well with refractors faster than f/7 or f/8? I am wondering if chromatic aberration (or spherochromatism) would be a problem as the light propagates through the glass prism.

Question by: Brian on Jul 13, 2017 4:00:00 PM | 1 Answer(s)

Rating of Question

-16

We do not recommend a prism for refracting telescopes unless the optical calculation of the objective lens calls for using a prism instead of a mirror.

For 100 years - all Carl Zeiss Refractor telescopes were designed to compensate for the added glaspath of a prism.

And throughout our 25 years of offering this prism we repeatedly found refractor telescopes - especially of very short focal length - where the airy disc went colorless only when adding a prism into the beam of light - as was the case with the "long gone" Astro Physics Traveler.

So please check carefully with your existing mirror star diagonal if the first ring of the airy disc appears reddish when observing a bright star - or better when observing an artificial star at high magnification. if this is found to be the case then a prism will bring a noticeable improvement.
If the first diffraction ring appears white already than a prism would not lead to an improvement but will induce a color error.

Answer by: Baader Web Team (Admin) on Jul 14, 2017 11:12:00 AM

Rate Answer

-11

You must be logged in to answer questions.

I already purchased this beautiful prism. Now I would like to attach the Giant Bino Mark V. How can this be done directly? With a 2"-Quick Changer ? If not yet, will you make them soon?
Or better: a Self Centering Adapter version ClickLock-QuickChanger. 2" and T2.

Question by: Arthur on Dec 28, 2016 4:28:00 PM | 1 Answer(s)

Rating of Question

-17

Does the 2" nose-piece accept standard 2" filters such as Lumicon UHC? If not, what adaptor would i need?

Question by: John on Nov 17, 2016 1:23:00 AM | 1 Answer(s)

Rating of Question

-24

Related Articles

Optical tube lengths of 2" Clicklock and BBHS mirror diagonals

Recently we received the following questions on our 2" Clicklock Diagonal Mirror and wanted to answer including the below illustrations for other customers: Please note: all of the below information is also valid for our 2" BBHS mirror and prism diagonals (with slight differences in the specifiations such as optical tube lengths – please compare with specs on the product pages). According to image below is the optical path mentioned in technical data (112mm for #2956100 and 109mm for #2956100Z) measured along optical axis from point A to B or point A to C? what is the dimension from point B to C? Can 2” barrel (at point A) be removed from #2956100 and exchanged with another accessory (is it available?) to change the diagonal to #2956100Z (M68x1 thread)? Please note below our answer and adjusted graphic: The optical path of 112mm is measured A to C. The lightway from A to B would be ~71,5mm. Please note that the final endpoint of B is 3,5mm outside of the prism body (as illustrated in the below graphic), it looks just like point A in your drawing The Dimension from B to C (height of the SC-ClickLock) is 44mm. It is overlapping the...
read article
Overview and Recommended Use: Baader Star Diagonals

The most versatile tools: Baader Star Diagonals (T-2 and 2") Manual and Recommended Use A Baader star diagonal (both prisms and mirrors) can show you impressive images for a lifetime and offers more connection and configuration options than standard star diagonals. Baader Planetarium's star diagonals not only offer the highest mechanical and optical quality, but also have the additional advantage of being part of a large, modular system. They enable very short adaptations as well as threads for direct connections to a telescope or a Baader focuser, as well as adaptation to a wide range of threads for torsion-free use with heavy or long accessories, such as binoviewers. Decades of customer feedback led Baader Planetarium to create a seemingly overwhelming amount of adapters. But each adapter has its purpose. This is the reason why you can always find the optical length of each part in the product description, so that you can find the best solution for your needs. To get the most out of them, we recommend that you spend a few minutes reading this brochure. On the following pages you will find a guide on how to choose coating and star diagonal type an overview of the different...
read article
Baader BBHS ® reflective properties

Exclusively available on Baader Sitall Ceramic Mirrors and on selected Baader prism Star Diagonals: BBHS® reflection coatings predominantly are being utilised on our highest quality grade 2" BBHS® Sitall Stardiagonals (#2456115 – incl. black housing and 2" ClickLock clamp) as well as on the BBHS® T-2 Sitall Stardiagonal (#2456103) - where the housing features a male and female T-2 thread - for shortening the optical path with bino use, and to offer the utmost in adaptation variability as well as much more light throughput than with any conventional 1 1/4" star diagonal. BBHS® stands for Broad Band Hard Silver. When applied onto our Sitall (zero expansion glass-ceramics) substrates, these multiple deposited layers of hard silver are being sealed by a set of dielectric layers to achieve long term durability. With this advance in coating technology our BBHS® coating lifetime equals that of a high quality AlSiO2 coating, matching the durability of standard aluminium coated diagonals (and telescope mirrors) which have been in wide use for many years. The BBHS® spectral bandpass is much wider though, when comparing with our 50 layer all dielectric coatings utilized on the 2" ClickLock Star Diagonals. The all dielectric coating system on the 2" ClickLocks...
read article

Specifications

Additional Information

Manufacturer	Baader Planetarium
SKU (#)	2456117
EAN Code	4047825033956
Net weight (kg)	0.51
Optical Design	Star Diagonal Prism
Inner Connection (lens sided)	Thread, M48, M55, 2" (50,8mm)
Outer Connection (lens sided)	Barrel, Dovetail ring, S58, 2" (50,8mm)
Inner Connection (eyepiece/-camera-sided)	Thread, Clamp, M55, 2" (50,8mm)
Reflection surface	BBHS coated, Dielectrically protected
Glas path	50 mm
AR-Coating	Phantom Coating® Group
Image Orientation	Erect image, Mirror inverted
Optical length (mm)	100
Clamping System	ClickLock
Deflection angle	90°
Inner Diameter / Clear Aperture (mm)	47.5
