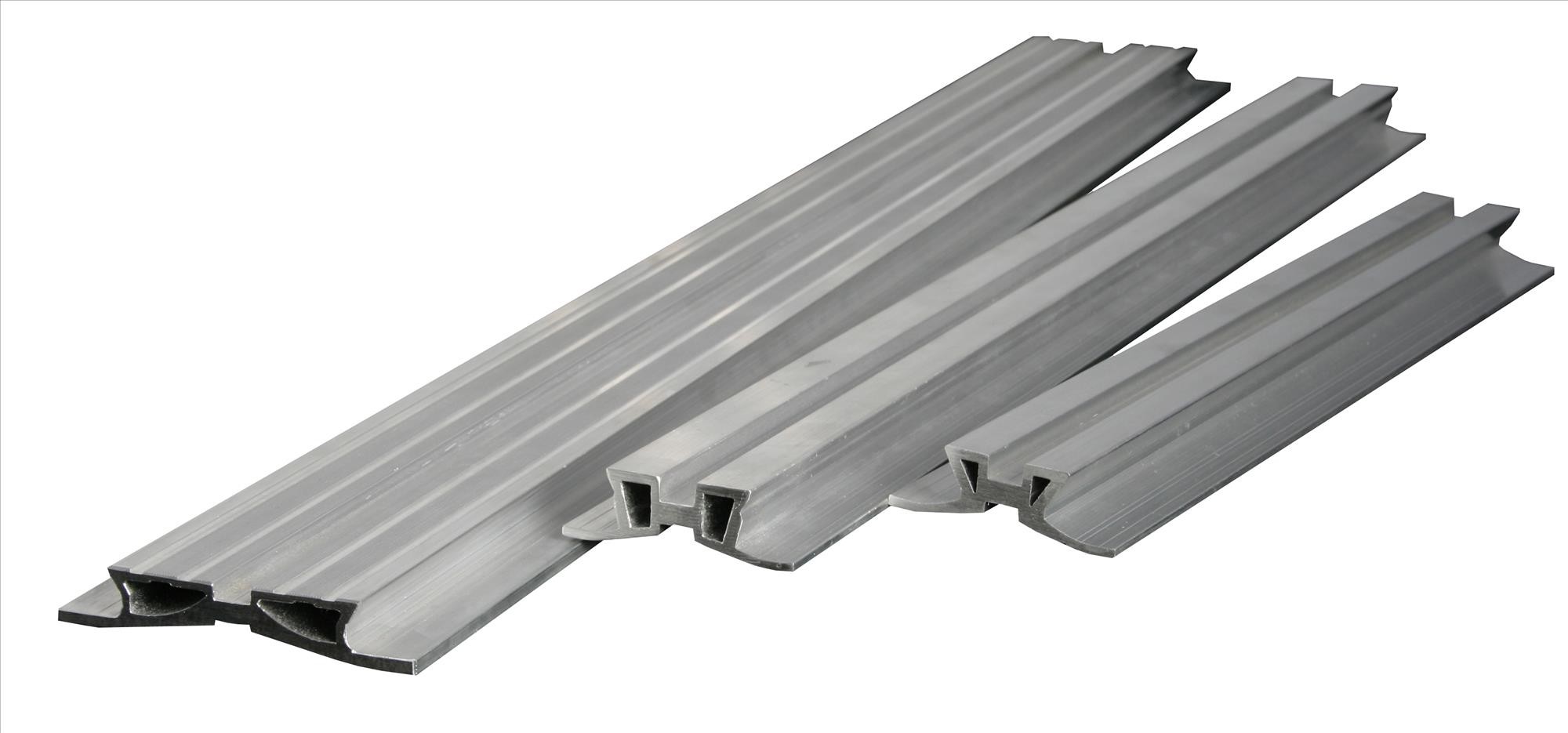

Dovetail bars as a custom-made product

Thank you for your interest in our dovetail bars. Please complete all the required fields in the form below. If possible, please enclose a drawing and a detailed description of the required rail.

The estimated total price including shipping costs is displayed at the bottom right based on your entries. We do not guarantee the accuracy of the price shown here - in particular for more complicated drilling patterns, special milling or countersinking etc., the price will be calculated after consultation.
After submitting the form, we will receive an email with your details. After 1-2 working days, you will receive an advance invoice from us for the amount shown (unless special drilling and/or anodized coating was requested for rails over 1500 mm in length). Once this invoice has been paid, we will start manufacturing your rail. This will be sent to you after completion (usually within one to two weeks after receipt of payment).

Dovetail-Bars

Please select
Please enter the desired length of your rail in millimeters. We reserve the right to a length tolerance of +/- 1.5 mm. The price per centimeter of length is € 2.00 or € 0.20 per millimeter
Please only enter the number of holes/threaded holes required here. Please describe the exact description of the hole/thread types and their positions in the text field.

Drag here or browse to upload

Drawing of your required dovetail bar (example see right)
This is an example of what a drawing you have made could look like.
Please describe in detail the required drill holes and/or threads, their spacing and which telescope is to be mounted on the dovetail bar.
If possible, please attach a drawing of the rail (see example above).

Personal details

If you are already a Baader Planetarium customer, please enter your name and e-mail address. Otherwise, please fill in your full address so that we can send you a quote.
