Perfect coma correction with Baader-MPCC – but how to adapt eyepieces?

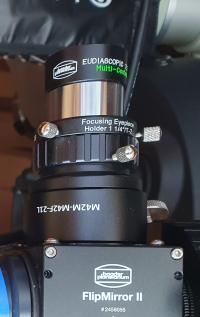

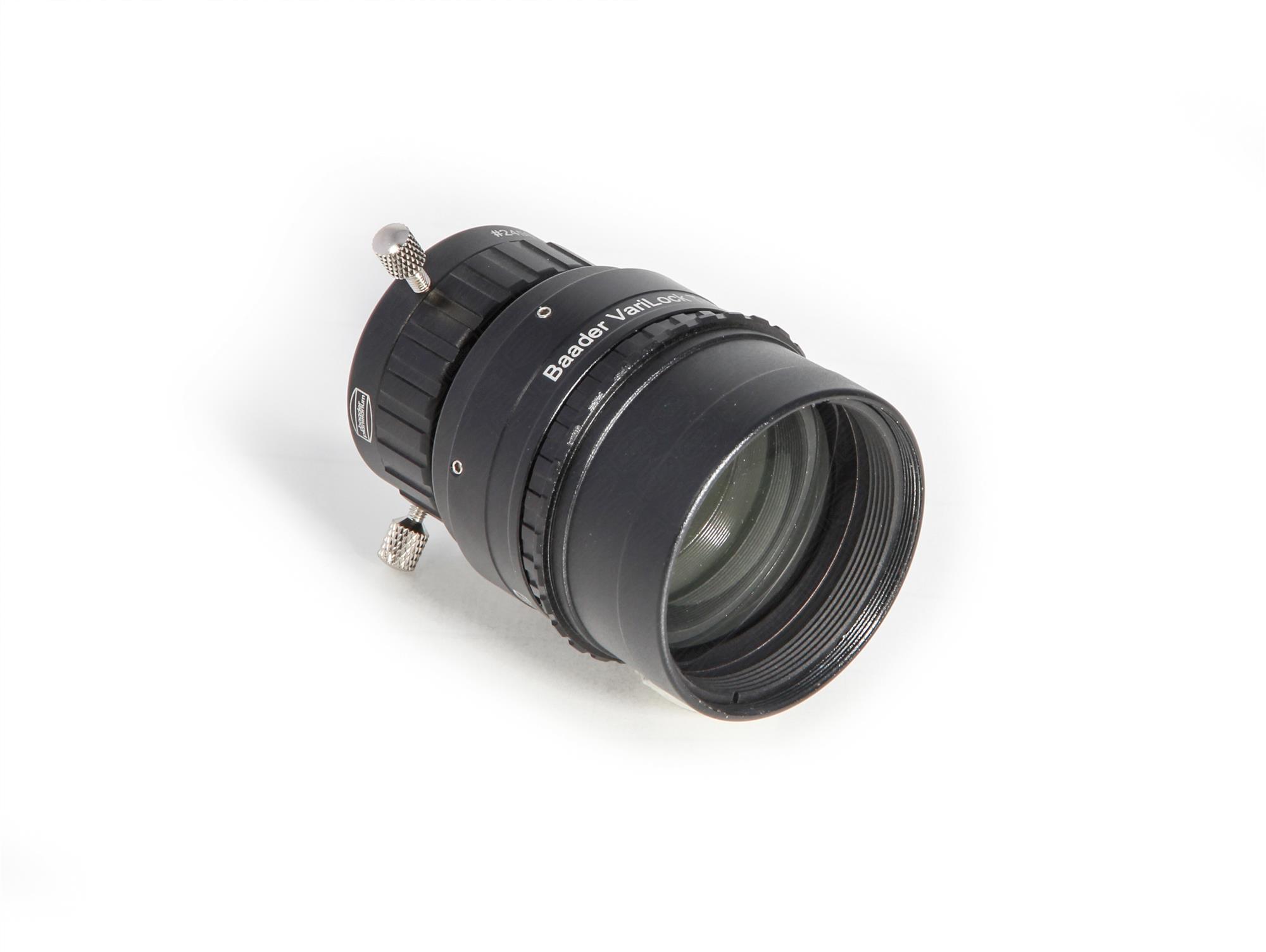

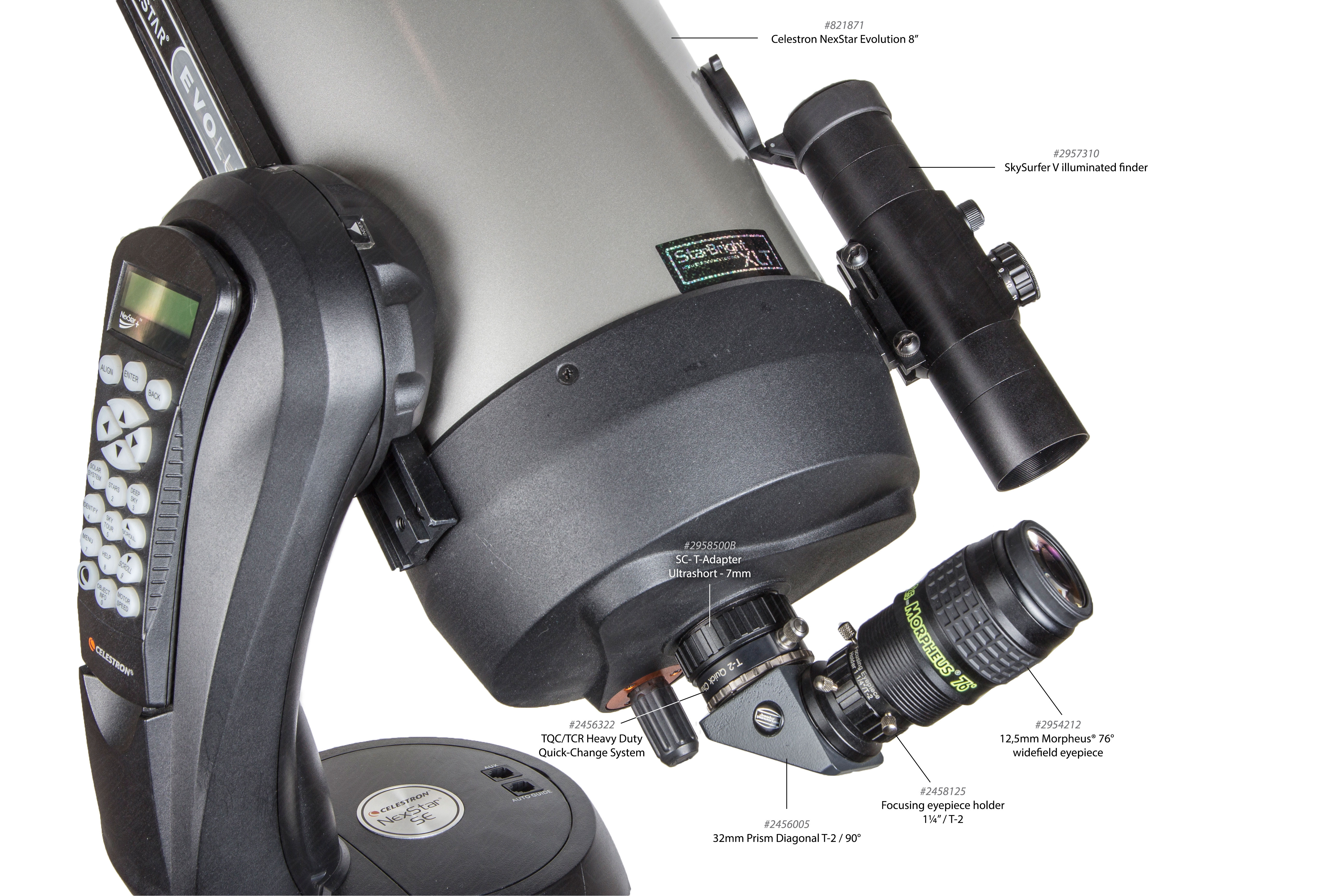

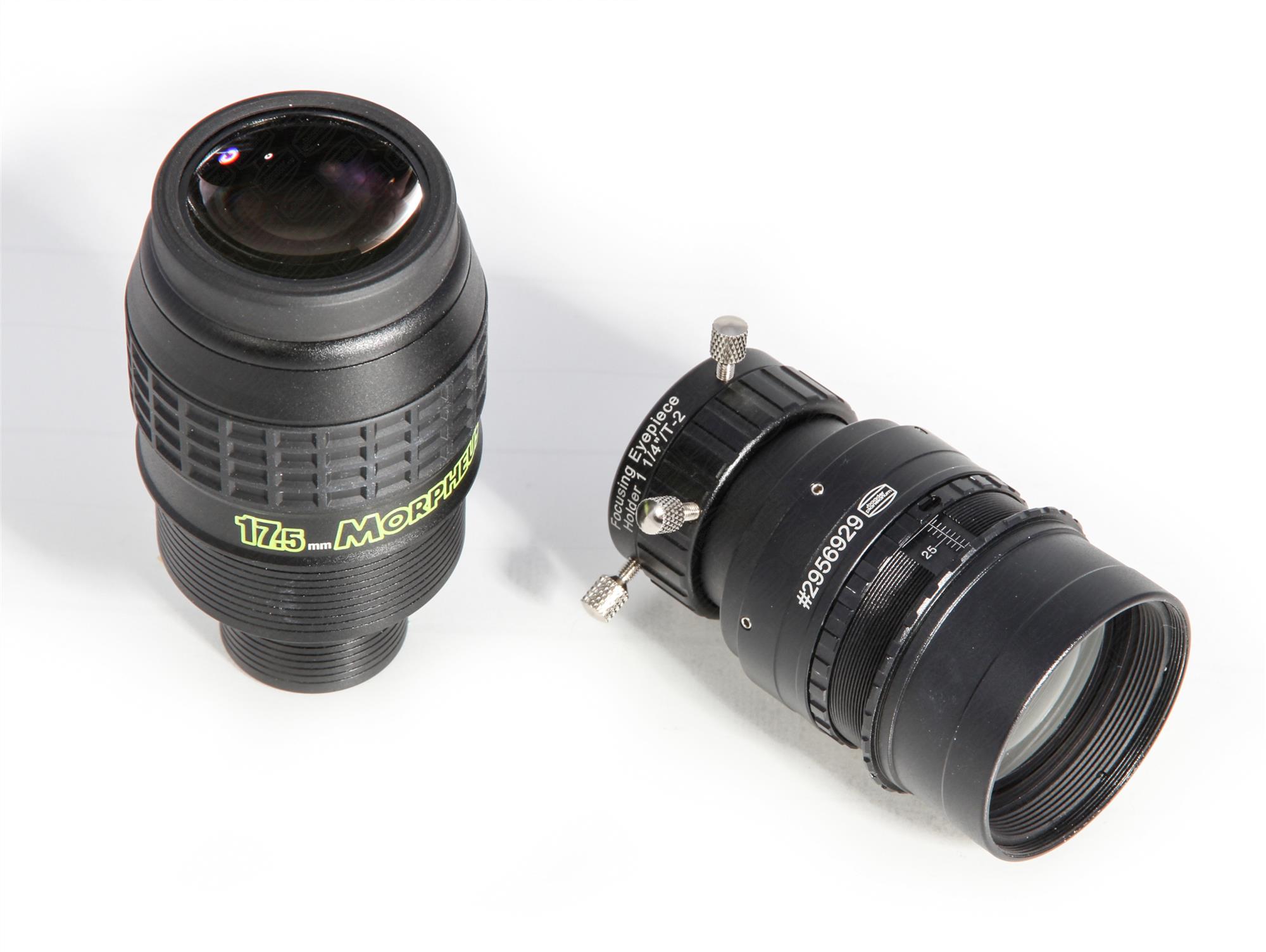

We received the following question and found it important to write an extensive answer for other customers. QUESTION: I purchased the Hyperion Zoom and the MPCC Mark III. Can you tell me how to adapt the eyepiece to the coma corrector? I also want to use other eyepieces. How do I know the right distance between fieldstop position and the MPCC? ANSWER: It is easy to produce an adjustable 1¼" eyepiece adapter for the Baader-MPCC coma corrector, offering a variable optical length from 49 to 64 mm, by using the following two parts: Baader focusing eyepiece clamp 1¼"/T-2 (item no. 2458125 / # 8a) Baader VariLock 20-29 mm T-2/T-2 adapter (item no. 2956929 / # 25Y) Combining these parts on top of the MPCC T-2-thread and rotating both adapters into the shortest optical length will provide an optical distance of 49 mm for an fully inserted eyepiece with 1¼" barrel. The MPCC is designer for a distance of 55mm to camera sensor or fieldstop. That means, the fieldstop inside an eyepiece could be placed up to 6 mm above the (upper) end of the 1¼" eyepiece barrel, in order to adjust for the 55 mm optical distance of the MPCC, which...
-
Additional Information
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2458125 |
| EAN Code | 4047825010162 |
| Net weight (kg) | 0.05 |
| Optical length (mm) | 29 – 35,5 |
| Clamping System | Screw clamps |
| T-2 Part # | 08A |
| Screw Type | 3x M3 clamping screws and M3 Rotations-Feststellschraube |
| Inner Diameter / Clear Aperture (mm) | 31,75 (1¼") |
| Outer Diameter | 47 |
| Inner Connection (lens sided) | Thread, T-2 (M42 x 0,75) |
| Inner Connection (eyepiece/-camera-sided) | Clamp, 1¼" |
| Compatible Brands | Astro T-2, UNC, Baader Planetarium, Celestron |
| Type of Adapter | Eyepiece Clamp, Reducing piece |
